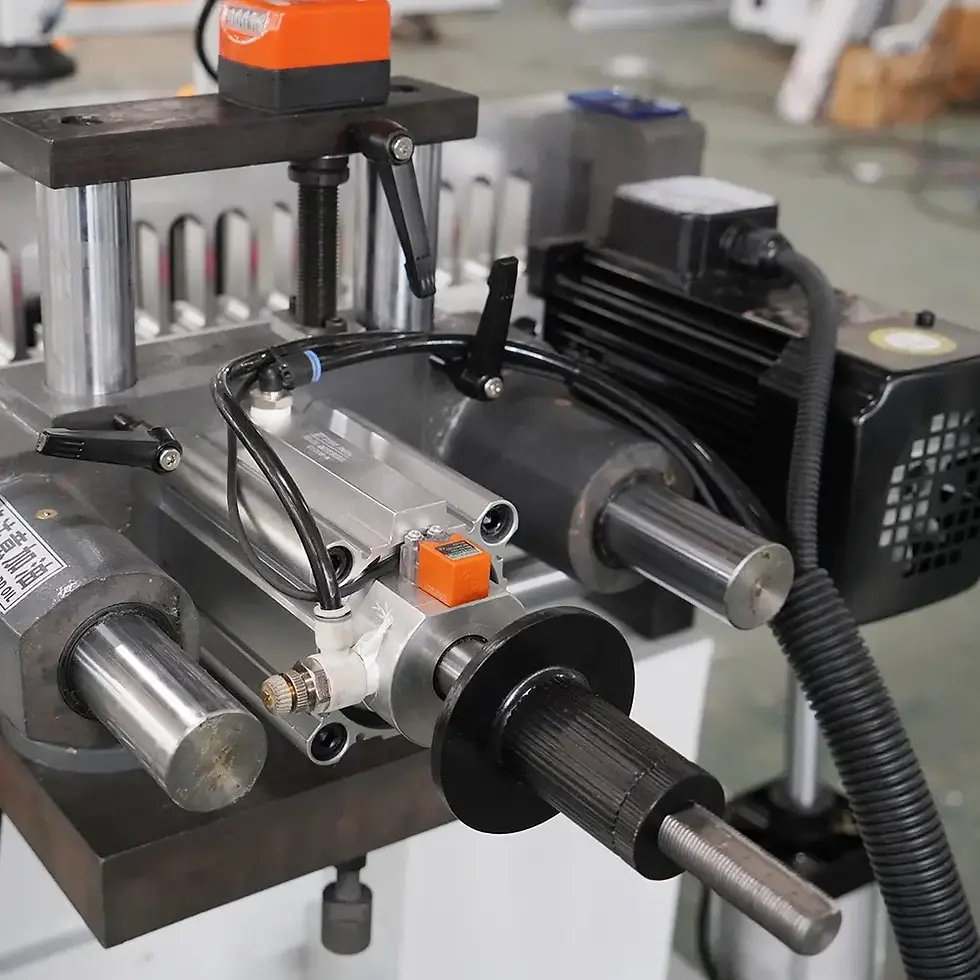

Three Head Boring Machine - Large - SZ-3L

SOLWOOD 3-Head Multi-Boring Machine – Panel Line
Model No. SZ-3L

The SOLWOOD 3-Head Multi-Boring Machine is designed for fast, accurate, and consistent hole drilling in MDF, particle board, plywood, and other panel materials used in modular and panel furniture manufacturing.
Equipped with 3 drilling heads — 1 horizontal and 2 vertical — and a total of 63 drilling spindles, the machine can perform multiple drilling operations efficiently in a single setup. Its pneumatic clamping system with precision linear guides ensures stable panel positioning, while the PLC control system with digital positioning and counters provides convenient operation and repeatable drilling results.
The machine is particularly suitable for modular furniture, cabinet manufacturing, knock-down furniture, and panel-based furniture production, where accurate and repetitive drilling is essential.

Key Features :
3 Drilling Heads – 1 Horizontal + 2 Vertical for multi-directional drilling.
63 Drilling Spindles – 21 spindles per head for efficient multi-hole drilling.
2840 RPM Spindle Speed for fast and consistent drilling performance.
Up to 60 mm Drilling Depth for a wide range of panel furniture applications.
2450 × 640 mm Working Area suitable for large furniture panels.
Pneumatic Panel Clamping provides secure and stable workpiece holding.
Precision Linear Guide System ensures smooth and accurate panel positioning.
PLC Control System for reliable machine operation.
Digital Positioning & Counters for improved productivity and repeatability.
Designed specifically for panel line and modular furniture production.
Suitable for drilling MDF, particle board, plywood, and furniture panels.

Technical Specifications :
Specification
Details
Machine Type
3-Head Multi-Boring Machine
Drilling Heads
3 Nos.
Head Configuration
1 Horizontal + 2 Vertical
Total Drilling Spindles
63 Nos.
Spindles Per Head
21 × 3
Spindle Speed
2840 RPM
Maximum Drilling Depth
Up to 60 mm
Working Length
2450 mm
Working Width
640 mm
Working Table
Pneumatic Clamping
Guide System
Precision Linear Guide
Control System
PLC
Positioning
Digital Positioning
Production Counter
Digital Counter
Power Requirement
6 HP
Power Supply
3 Phase, 415V, 50Hz
Machine Dimensions
3750 × 2500 × 1560 mm
Suitable Materials
MDF, Particle Board & Plywood

Drilling Configuration :
Horizontal Drilling Head – 1 No.
The horizontal drilling head is designed for drilling holes on the panel edge, making it suitable for furniture assembly and joining applications.
Vertical Drilling Heads – 2 Nos.
The two vertical drilling heads allow efficient drilling on the panel surface for applications such as shelf pins, dowels, hinges, connectors, and other furniture hardware.
With 21 drilling spindles per head, the machine can perform multiple-hole drilling operations efficiently, reducing manual marking and repeated setup time.
