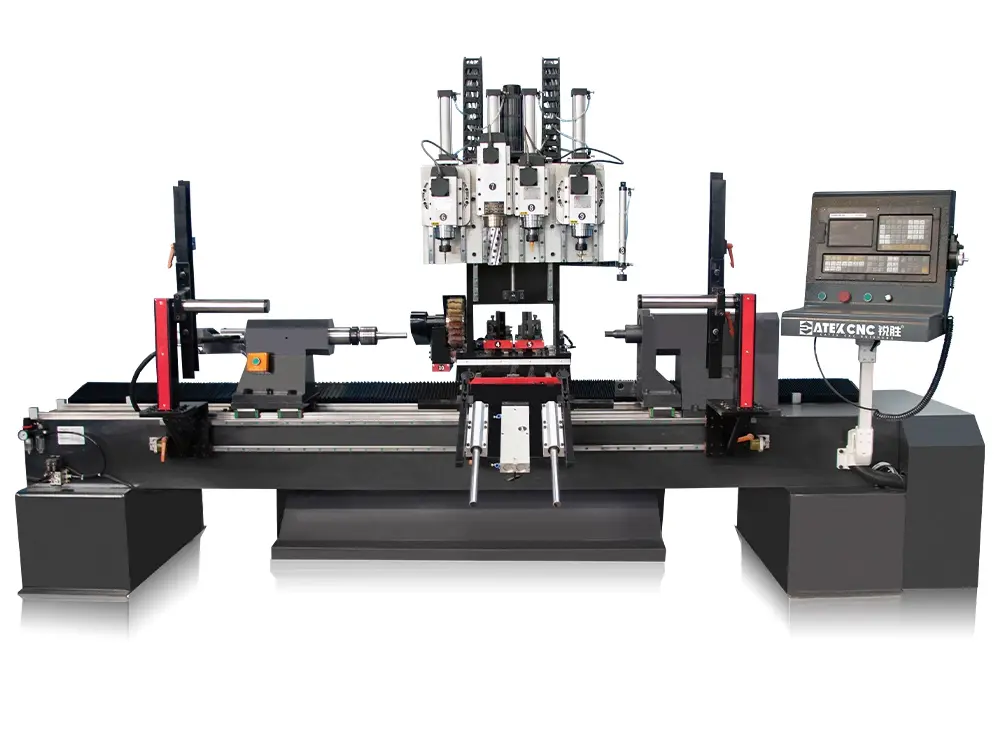

7-Axis Multi-Functional CNC Lathe - SL-1530-7T

SOLWOOD 7-Axis Multi-Functional CNC Lathe – Model SL-1530-7T

Technical Specifications
Processing Capacity:
Supports workpieces up to 1500 mm length × 300 mm diameter, suitable for furniture legs, stair components, columns, and decorative wooden profiles. Processing dimensions can also be customized according to production requirements.
Heavy Duty Machine Bed:
Built with a heavy gray cast iron double-row parallel bed frame for maximum stability, vibration resistance, and long-term precision during high-speed machining. Comes with an independent electrical control cabinet for safe and efficient operation.
Rotary Servo Motor:
Equipped with a 4 kW high-performance servo rotating motor providing smooth and precise rotation control for turning and carving operations.
Drive System:
Powered by 3 sets of 1800 W servo motors, ensuring accurate multi-axis movement, improved positioning accuracy, and stable machining performance.
Inverter System:
Uses Hpmont inverter / servo inverter, offering efficient speed control, energy saving, and reliable motor protection.
Motor Speed Range:
Adjustable 0 – 6000 RPM, allowing operators to optimize speed according to material type and machining requirements.

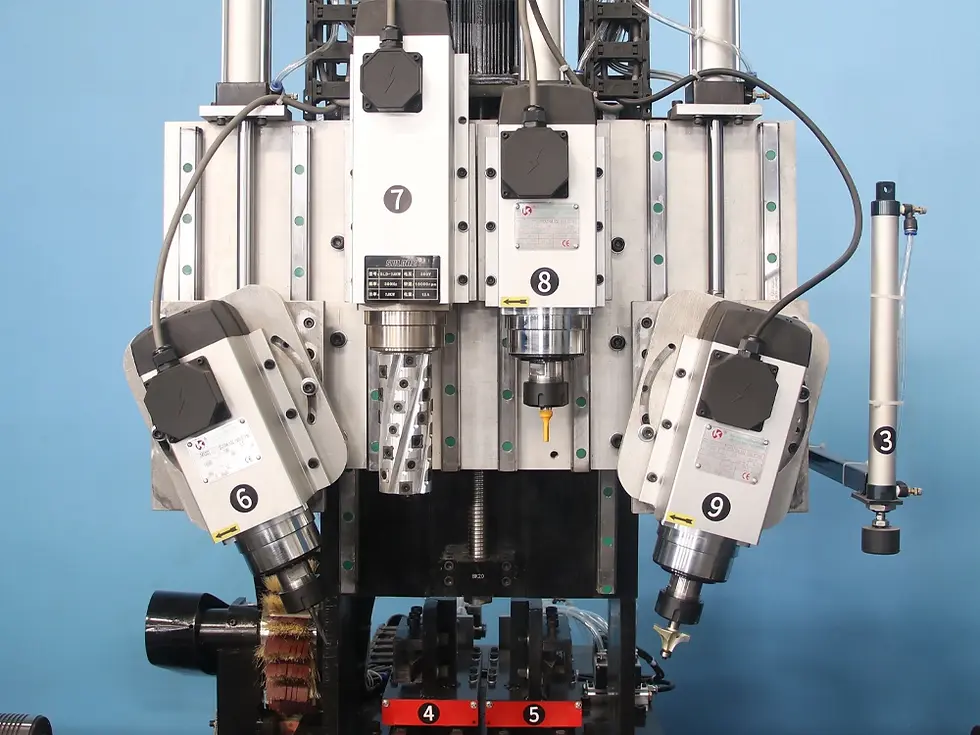

Milling Spindles:
Equipped with 3 sets of 6 kW high-speed air-cooled milling spindles, supporting four-axis machining for advanced carving, grooving, and shaping operations.
Milling Spindle Speed:
High-speed performance with 0 – 18,000 RPM, ensuring smooth surface finish and precise detailing.
Planer Spindle System:
Includes a 7.5 kW high-speed air-cooled planer spindle, specially designed for planer blade operations and surface shaping.
Planer Blade Specification:
Standard blade size 150 mm length × 60 mm diameter, with custom sizes available without additional charges.
Planer Spindle Speed:
Adjustable 0 – 18,000 RPM for efficient and accurate planing operations.
Grinding & Polishing Unit:
Features a frequency-conversion servo motor controlled grinding wheel with 230 mm diameter × 50 mm width, enabling smooth polishing and finishing (customizable size available).
Polishing Speed:
Variable 0 – 6000 RPM for high-quality finishing and surface smoothness.
Turning Tool Positions:
Machine includes two turning tool installation positions, allowing operators to install additional cutting tools according to machining needs.
Transmission System:
Utilizes Taiwan HIWIN 30 mm linear guide rails combined with a high-precision helical rack drive system, ensuring smooth movement, durability, and high machining accuracy.

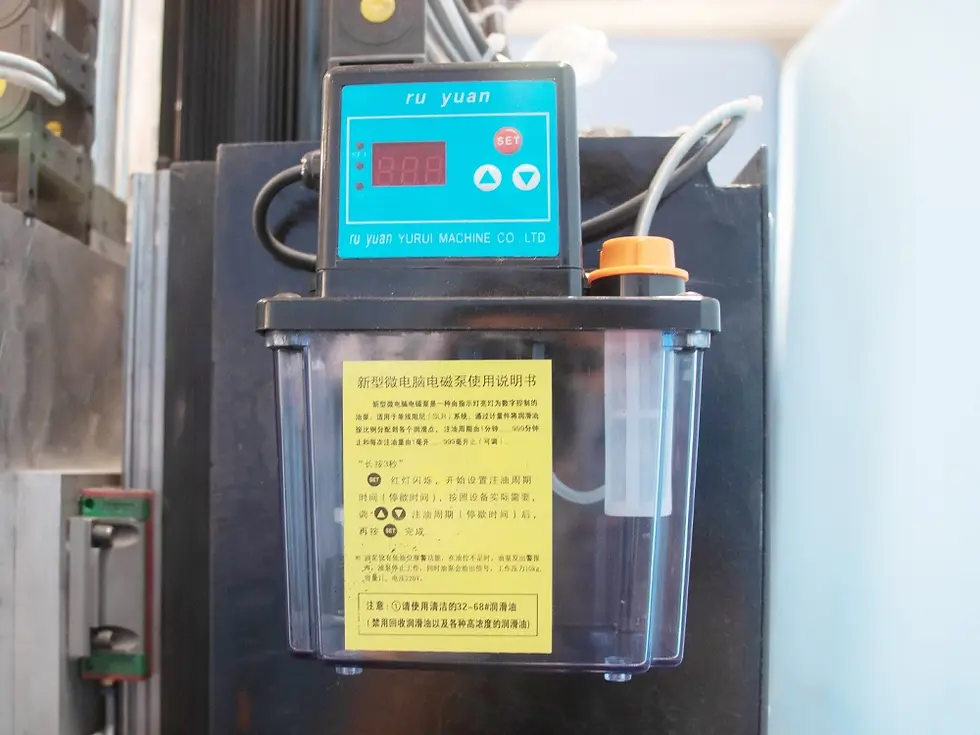

Lubrication System:
Equipped with a central automatic lubrication system for scheduled lubrication of key components, reducing maintenance and extending machine life.
Programming Compatibility:
Supports standard G-Code, U00, MMG, and PLT formats, making it compatible with most CNC programming environments.
Control System:
Integrated with a special CNC control panel – 1000TC system, designed for easy operation, high reliability, and efficient multi-axis coordination.
Maximum Movement Speed:
Rapid positioning speed up to 60,000 mm/min, improving production efficiency.
Operating Voltage:
Compatible with AC 380V / 220V, 50–60 Hz, suitable for various industrial power environments.
Compatible Software:
Works seamlessly with ArtCAM, Type3, CAD, CDR (CorelDRAW), SolidWorks, UG, PowerMILL, and other common design and CAM software.
Automatic Feeding System:
Includes multi-linkage cylinder loading rack, enabling simple, stable, and efficient automatic material feeding.
Safety Protection:
Equipped with photoelectric limit protection on all XYZ axes, ensuring safe operation and preventing accidental over-travel.
Positioning Accuracy:
High precision positioning with ±0.02 mm accuracy, ensuring consistent machining quality.
Machine Weight:
Approx. 3200 kg, providing strong rigidity and vibration-free operation.
Machine Dimensions:
3750 × 2350 × 1950 mm (L × W × H).
