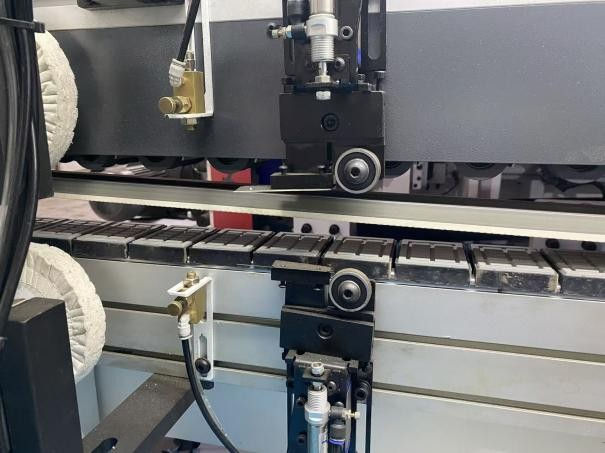

Aluminium Edge Banding Machine - SK-968-AL

Working Type: Automatic edge banding for Aluminium honeycomb & wooden panels
Panel Thickness: 10–60 mm
Edge Thickness: 0.4–3 mm (PVC)
Functions: Spraying → Pre-Milling → Pre-heating → PUR Gluing 1 → Gluing 2 → Six Wheel Pressing → Belt Pressing → Rough Trimming → Fine Trimming → Edge Scraping → Double Guide End Trimming → Corner Rounding → Flexible Flat Scraping → Cleaning Agent → Buffing 1 → Buffing 2
Heating System: High-efficiency glue pot with temperature control & PUR Glue System with Melter (10 Kgs)
Control System : PLC touch screen - 19" with function selection
Structure : Heavy-duty frame for Aluminium & wooden panel operation
Panel length - Min. 150mm (corner trimming45x300MM)
Panel width - Min. 50mm
Edge band width - 10-60mm
Edge band thickness - 0.4-3mm
Feeding speed - 16-18-22m/min
Pre-milling power - 2.2kw*2pcs
Glue box power - 1.8kw
End trimming power - 0.37kw*2pcs
Rough trimming power - 0.75kw*2pcs
Fine trimming power - 0.75kw*2pcs
Corner trimming power - 0.37kw*4pcs
Polish power - 0.37kw*4pcs
Convey belt power - 4kw
Installed power - 17.56kw 3 Phase, 415V, 50 Hz
Air pressure - 0.7-0.9Mpa
Machine Dimensions : 9600 mm x 1735 mm x 745 mm
Usage : For Aluminium Honeycomb panels, wood composite boards & architectural cladding.
