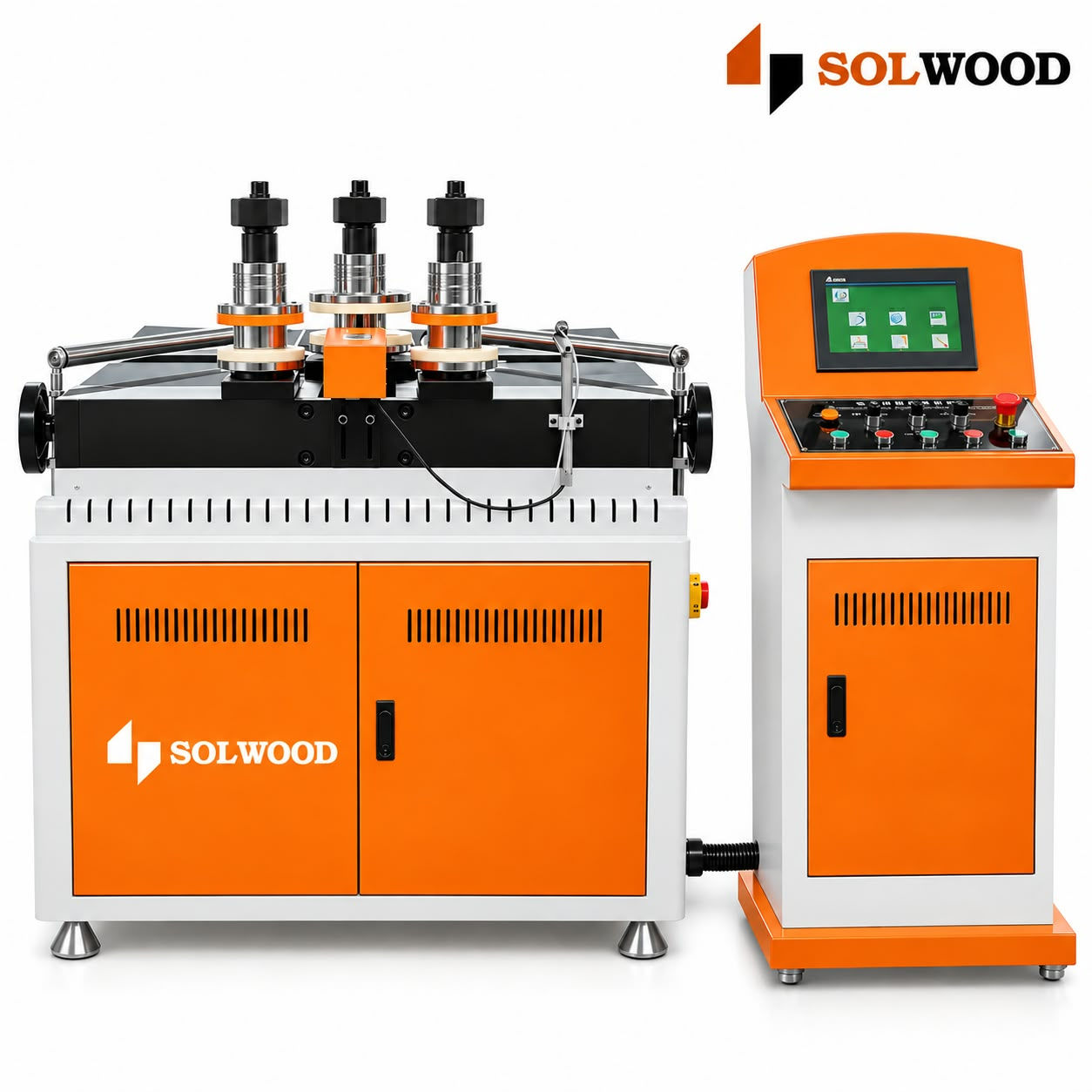

Aluminum CNC Bending Machine - SLW-20T
SOLWOOD Fully Automatic CNC Bending Machine for Aluminum Profiles
Model No.: SLW-20T
The SOLWOOD - SLW-20T Fully Automatic CNC Bending Machine is designed for precision bending and arc forming of aluminum alloy profiles, door and window profiles, thermal-insulated profiles, and other special-shaped metal profiles. The machine uses an industrial computer control system with dedicated arc-bending software for convenient operation, precise positioning, and consistent bending results.
The CNC system also supports systematic compensation according to profile rebound data, helping achieve accurate finished shapes and improved machining precision.
Key Features :
Fully Automatic CNC Control for efficient and consistent profile bending
Industrial Computer Control System with specialized arc-bending software
Suitable for aluminum alloy door and window profiles
Suitable for thermal-insulated profiles and special-shaped metal profiles
Profile Rebound Compensation for improved bending accuracy
10-inch Operating Display for convenient machine operation
German Rexroth Hydraulic System for reliable hydraulic performance
Imported cylinder sealing rings for extended service life
Wear-resistant hydraulic oil meeting European advanced CNC bending machine standards
Straight I-shaped top shaft movement for smooth operation
Anti-tilt brackets to help prevent shaft inclination
Anti-static powder-coated machine body
Galvanized welded-pipe frame for improved rust resistance
Technical Specifications :
Model No.: SLW-20T
Machine Type: Fully Automatic CNC Bending Machine
Application: Aluminium and special-shaped metal profiles
Power Supply: 600 / 450 / 380 / 220V, 50/60Hz
Total Power: 6 kW
Minimum Bending Radius: 200 mm
Maximum Profile Size: H150 × W200 mm
Fixed Wheel Center Distance: 450–850 mm
Hydraulic Cylinder Pressure: 20 Ton
Roller Spindle Diameter: 65 mm
Spindle Speed: 1–15 rpm
Y-Axis Positioning Accuracy: ±0.02 mm
Y-Axis Feed Range: 0–220 mm
Torque: 7000 N
Display: 10-inch operating screen
Machine Dimensions: 1800 × 1500 × 1600 mm
Approx. Machine Weight: 1000 kg
Applications :
The SOLWOOD SLW-20T is suitable for bending and arc-processing applications involving:
Aluminium door and window profiles
Aluminium alloy profiles
Thermal-insulated profiles
Special-shaped aluminium profiles
Curved and arc-shaped profile components
Other compatible metal profiles
Advantages :
The CNC-controlled bending system provides programmable and repeatable profile processing, while rebound compensation helps maintain dimensional accuracy after bending. The hydraulic system, rigid frame construction, anti-tilt support and precision Y-axis positioning system are designed for stable and reliable operation in professional aluminium profile processing applications.
