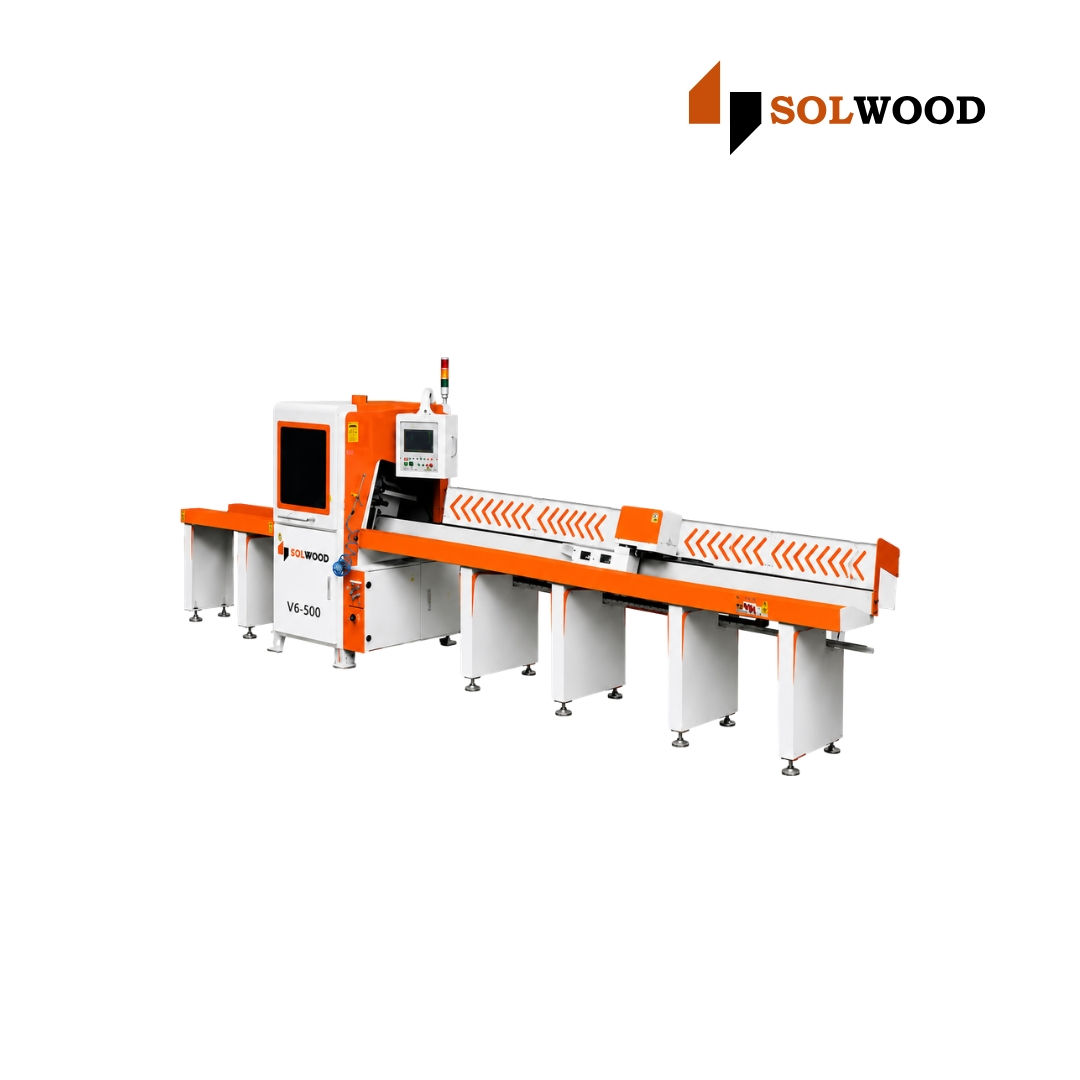

Automatic Cross Cut-Off Saw - SW-J601-4M

Automatic Cross Cut-Off Saw - SW-J601-4M

SKU: SW-J601-4M
₹2,150,000.00 Regular Price
₹1,935,000.00Sale Price
SOLWOOD Automatic Cross Cut-Off Saw
Model: SW-J601-4M

Product Overview
The SOLWOOD SW-J601-4M Automatic Cross Cut-Off Saw is a high-speed, PLC-controlled automatic cutting machine designed for accurate cross-cutting of solid wood, timber, mouldings, battens, and furniture components. Equipped with servo-controlled automatic feeding and a heavy-duty 7.5 kW saw motor, the machine delivers precise cutting lengths, smooth cutting surfaces, and high production efficiency.
Designed for continuous industrial production, the SW-J601-4M is an ideal solution for furniture manufacturers, door and window factories, flooring manufacturers, pallet industries, and solid wood processing plants requiring fast, accurate, and repeatable cross-cutting.

Key Features
  • PLC controlled automatic cutting system
  • Servo motor driven automatic feeding
  • High-speed precision cutting
  • Digital cutting length input
  • Heavy-duty 7.5 kW main saw motor
  • Precision spindle for accurate cutting
  • Smooth cutting with minimal burrs
  • High vertical cutting accuracy
  • Automatic lubrication system
  • Heavy-duty linear guide rail feeding system
  • Industrial-grade electrical components
  • Easy operation through touchscreen interface
  • Suitable for continuous production

Applications
The SOLWOOD Automatic Cross Cut-Off Saw is suitable for cutting:
  • Solid Wood
  • Hardwood
  • Softwood
  • Timber Sections
  • Furniture Components
  • Door Components
  • Window Components
  • Wooden Battens
  • Flooring Profiles
  • Packaging Wood
  • Pallet Components
  • Cabinet Parts
  • Wood Strips
  • Construction Timber

Technical Specifications :
ParameterSpecification
BrandSOLWOOD
ModelSW-J601-4M
Machine TypeAutomatic Cross Cut-Off Saw
Control SystemPLC with Touch Screen
Feeding SystemServo Motor Automatic Feeding
Cutting LengthStandard 4 Meter
Cutting Width18 – 250 mm
Working Thickness10 – 90 mm
Maximum Cutting Capacity250 × 90 mm
Minimum Cutting Area310 × 30 mm
Saw Blade DiameterØ455 × Ø30 mm
Saw Shaft Speed3600 RPM
Main Saw Motor7.5 kW
Servo Motor Power0.75 kW
Feed SpeedUp to 60 m/min
Working Air Pressure5–6 kg/cm²
Power Supply380V, 3 Phase
Dust Collection Port2 × Ø120 mm
Machine Weight1500 kg

Standard Machine Configuration
  • PLC Control System
  • Industrial Touch Screen HMI
  • Servo Feeding System
  • Precision Saw Spindle
  • Heavy-Duty Machine Frame
  • Taiwan Linear Guide Rails
  • Automatic Lubrication System
  • Industrial Planetary Gearbox
  • Imported Precision Bearings
  • High-Speed Alloy Saw Blade
  • Dual Dust Extraction Ports
  • Electrical Control Cabinet
Machine Advantages
  • High production efficiency
  • Accurate repeat cutting
  • Smooth cut surface with minimal burrs
  • Servo-controlled precision feeding
  • Easy length setting through touchscreen
  • Reliable industrial construction
  • Reduced material wastage
  • Low maintenance
  • Continuous heavy-duty operation
  • Suitable for mass production
