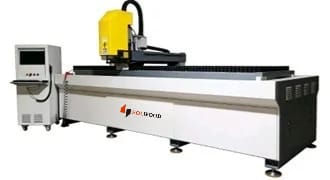

CNC Aluminium Handle Milling Machine - SC-3000-H2

Solwood - CNC Aluminium Handle Milling Machine
High Precision | Heavy Duty | Industrial Performance

Machine Type & Application
This CNC Aluminium Handle Milling Machine Is Specially Designed For Precision Milling Of Aluminium Handles, Profiles, Grooves, Slots, And Custom Shapes. Ideal For Door & Window Hardware, Furniture Handles, Architectural Aluminium Parts, And Industrial Components.

Axis Travel & Working Capacity
Horizontal Stroke (X-Axis):
3000 Mm Large X-Axis Travel Enables Long Aluminium Handle And Profile Machining In A Single Setup

Longitudinal Stroke (Y-Axis):
400 Mm Provides Stable Side Movement For Slotting, Pocketing, And Profile Milling
Vertical Stroke (Z-Axis):
350 Mm Allows Flexible Tool Height Adjustment And Multi-Depth Machining

Axis Speed & Motion Control
X-Axis Running Speed:
0–50 M/Min High-Speed Movement Improves Productivity And Reduces Cycle Time

Y / Z-Axis Running Speed:
0–20 M/Min Ensures Smooth, Accurate Vertical And Side Movements

Servo Drive System:
X, Y, Z Axes Equipped With 0.85 Kw Inovance Servo Motors For High Positioning Accuracy And Stable Motion Control

Servo Brand:
Inovance – Reliable Industrial Servo System With High Torque And Fast Response

Spindle System
Spindle Type:
Water-Cooled High-Speed Spindle For Continuous And Heavy-Duty Aluminium Machining
Spindle Speed:
18000 R/Min Ensures Clean Cutting, Fine Surface Finish, And Efficient Chip Removal
Spindle Power:
9 Kw Provides Strong Cutting Capability For Aluminium And Non-Ferrous Metals
Spindle Motor Brand:
Jiangsu Huadiao – Proven Performance And Long Service Life

Tooling & Worktable
Tool Holder Type:
BT30 Tool Chuck Ensures Strong Tool Clamping And High Precision Machining

Tool Magazine:
2-Tool Automatic Tool Change System Improves Efficiency For Multi-Step Operations

Worktable Position:
0° Fixed Table Design For Stable And Accurate Processing

Automatic Tool Setter:
Equipped For Quick Tool Length Measurement And Reduced Setup Time

Linear Motion & Transmission Components
Guide Rail & Ball Screw Brand:
Taiwan HIWIN HGR30C Linear Guideways Provide High Rigidity, Precision Movement, And Long-Term Stability

Reducer Brand:
Taiwan Fasten Ensures Smooth Power Transmission And Reduced Mechanical Wear

Control & Electrical System
Control System:
Taiwan LNC CNC Controller With User-Friendly Interface And High Processing Speed

Main Electrical Components:
Schneider And Omron For Reliable Electrical Performance And Industrial Safety

Pneumatic & Lubrication System
Air Supply Requirement:
0.6 – 0.8 Mpa For Stable Pneumatic Operation
Main Pneumatic Parts Brand:
Star – Ensures Reliable Air Control And Long Service Life
Lubrication System:
Automatic Oil Pump Lubrication For Guide Rails And Screws, Reducing Wear And Maintenance

Tool Cooling Method:
Automatic Spray Cooling System Improves Tool Life And Machining Quality

Power & Installation
Power Supply:
380 V + Neutral, 3-Phase, 5-Wire, 50 Hz Suitable For Industrial Power Standards
Total Installed Power:
13 Kw Optimized Power Consumption With High Output Performance

Machine Size & Weight
Processing Range (W × H × L):
200 × 150 × 1200 Mm Suitable For Aluminium Handle And Profile Machining
Machine Weight:
Approx. 2300 Kg Heavy Machine Structure Ensures Vibration-Free Operation
Overall Machine Dimensions:
5050 × 1900 × 2200 Mm Compact Industrial Layout With High Working Capacity
