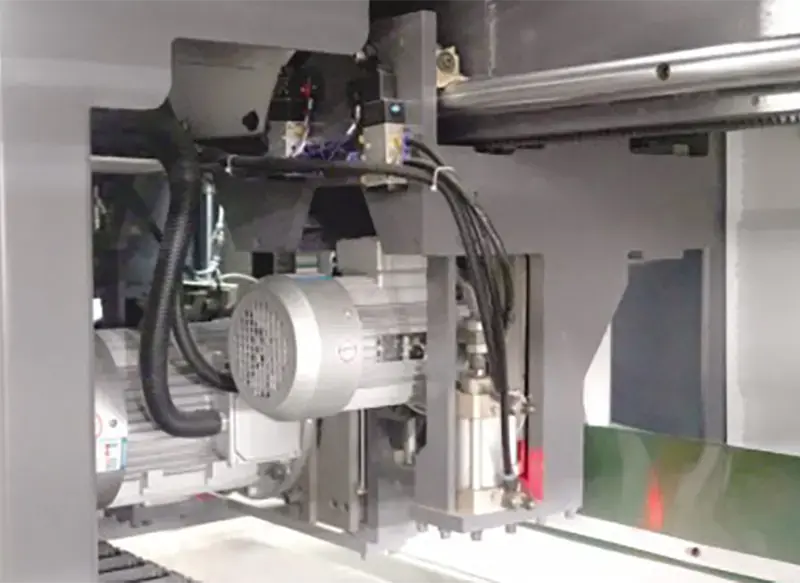

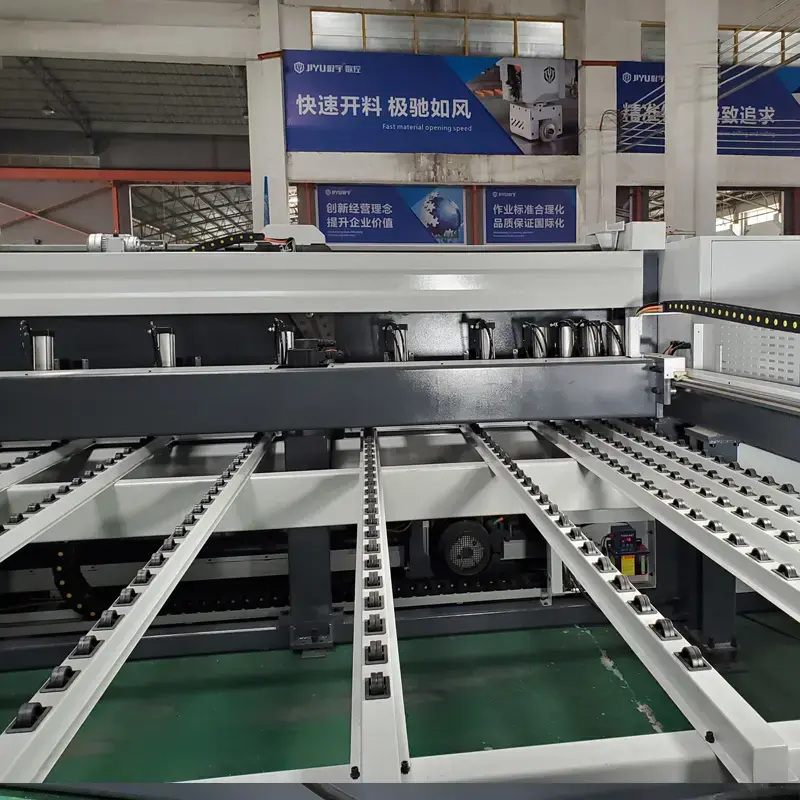

CNC Beam Saw - SB-928

Model - SB-928
Sawing Length - 2800mm
Sawing Width - 2800mm
Sawing Thickness - 100-120mm
Small saw blade outer diameter - 200mm
Small saw shaft diameter - 50mm
Small saw speed - 6200 r/min
Sawing speed - 0-100 M/min
Feeding Speed - 0-100 M/min
Return speed - 0-120 M/min
Positioning Way - Automatic
Positioning Accuracy - ±0.02mm
Sawing Accuracy - ±0.15mm
Main Saw Motor Power - 15kw
Small saw motor power - 1.5kw
Saw carriage traction motor power - 2.0kw
Manipulator Servo Motor - 2.0kw
Centrifugal fan - 3kw
Total power - 23.5kw
Main saw blade outer diameter - 400-450mm
Worktop thickness - Main saw - 25mm; Small saw - 16mm
Main saw shaft diameter - 75mm
Tolerance within 1M of rack rack - 0.02mm
Main saw speed - 4100 r/min
Pressing method - Cylinder clamp
Color standard - Off-white
Machine Size - 5600*6500*2100mm
Weight of machine - 6350kg
Loading dimension - Main machine: 5200*1450*2100 mm
Accessories - 3600*800*1900 mm
Air pressure - 0.6-0.8 MPA
