CNC Nesting Line - SCN-94ZV - 9 KW
CNC Nesting Line with Automatic Loading, Unloading & Drilling
Model : SOLWOOD - SCN-94ZV-9 KW
Origin: China
Working Area & Travel
X-Axis Working Size: 1300 mm
Y-Axis Working Size: 2800 mm
Z-Axis Working Height: 300 mm
Spindle & Cutting System

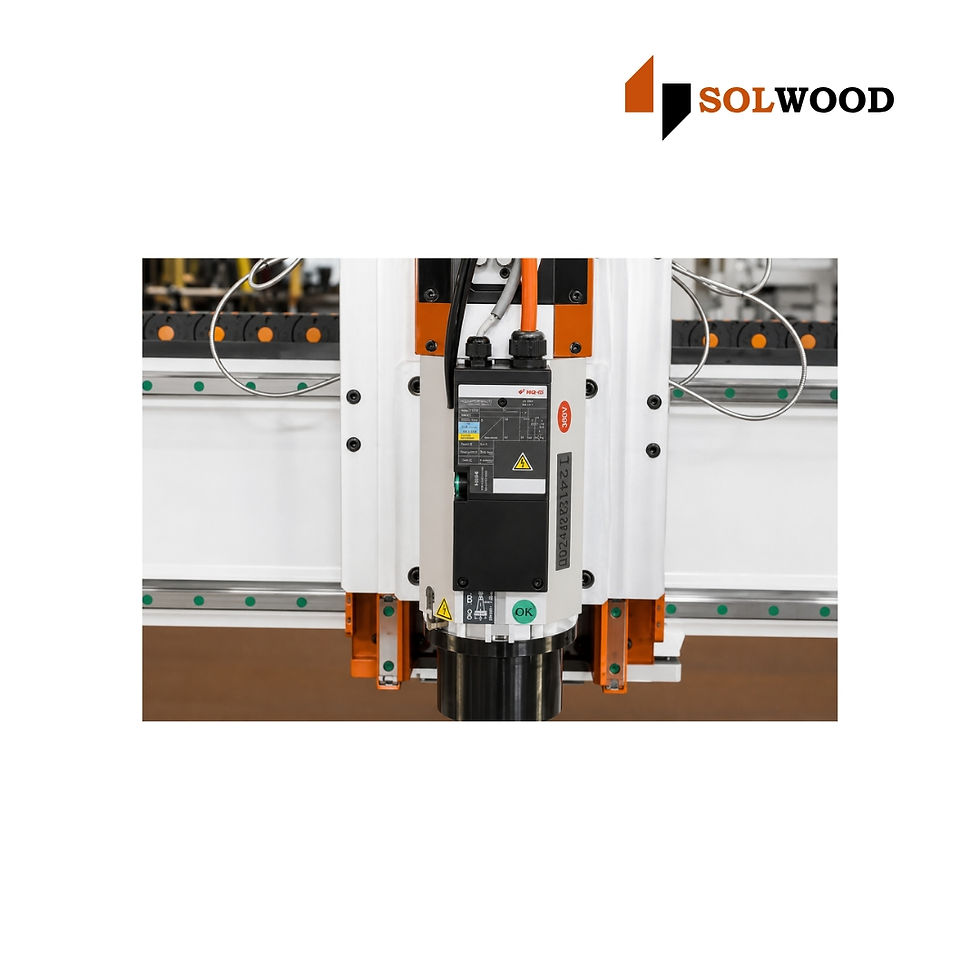

Main Spindle: HQD 9 KW Air-Cooled Spindle
Spindle Type: High-speed, heavy-duty industrial spindle
Application: Cutting, grooving, nesting & panel processing
Control & Software System

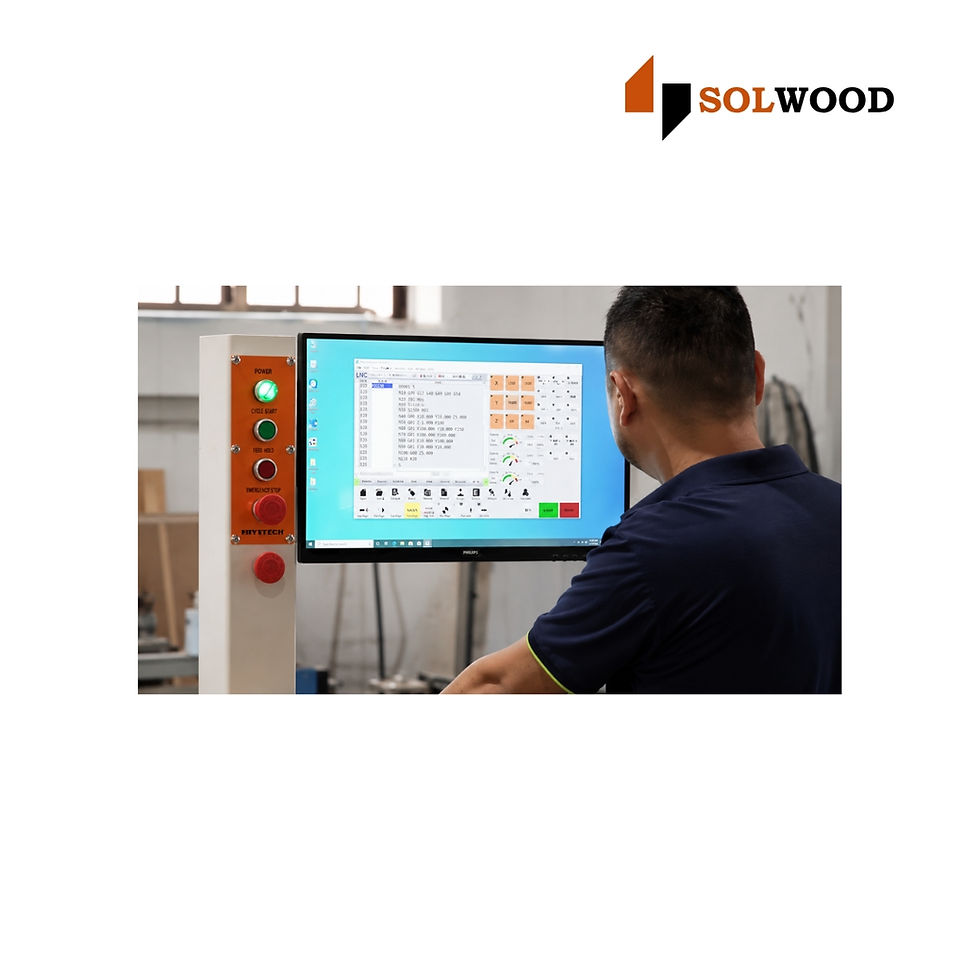

Control System: Taiwan LNC Controller with Industrial PC/ Weihong/ Syntec
Computer Operation: Design & drawing directly on machine PC
Supported Use: CNC nesting, modular furniture & panel processing
Motion System
Linear Guide Rails: HIWIN – 25 mm (X / Y / Z Axis)
Rack & Pinion: X & Y Axis – Module M=1.5
Drive System: High-precision rack transmission
Machine Speed
X-Axis Running Speed: 75 m/min
Y-Axis Running Speed: 75 m/min
Z-Axis Running Speed: 15 m/min
Tool Changing System

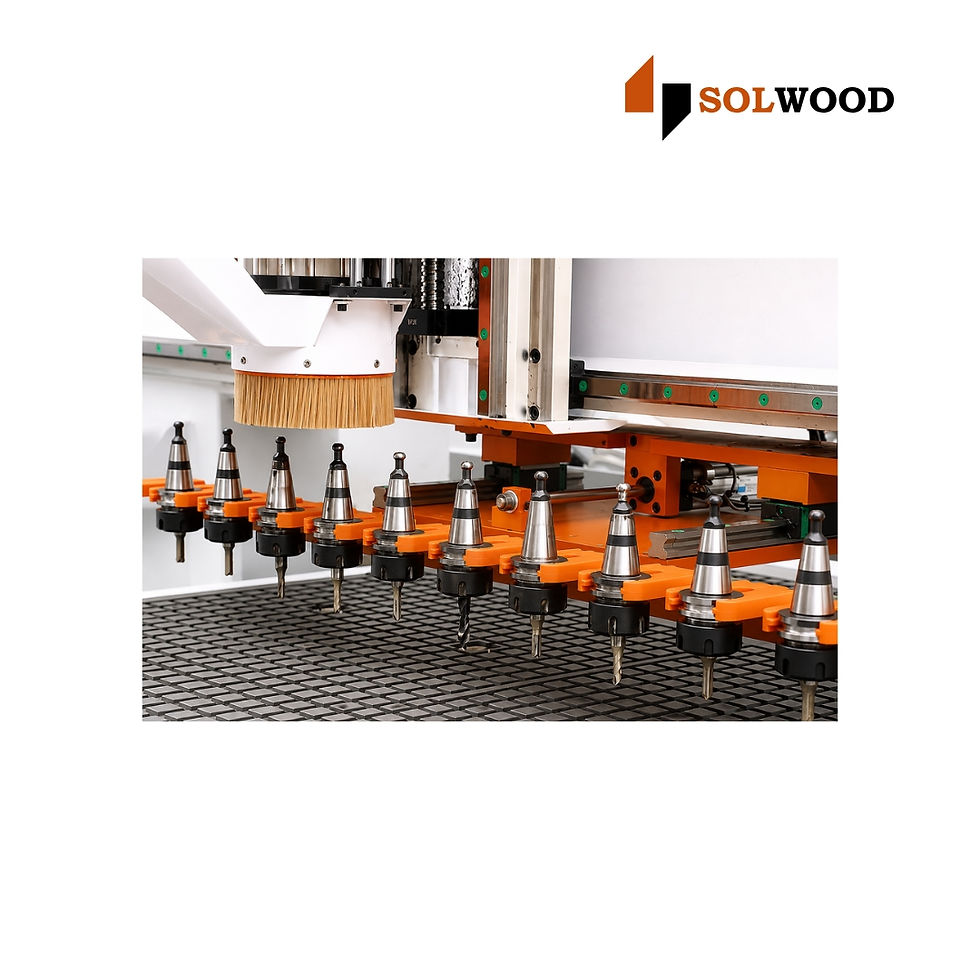

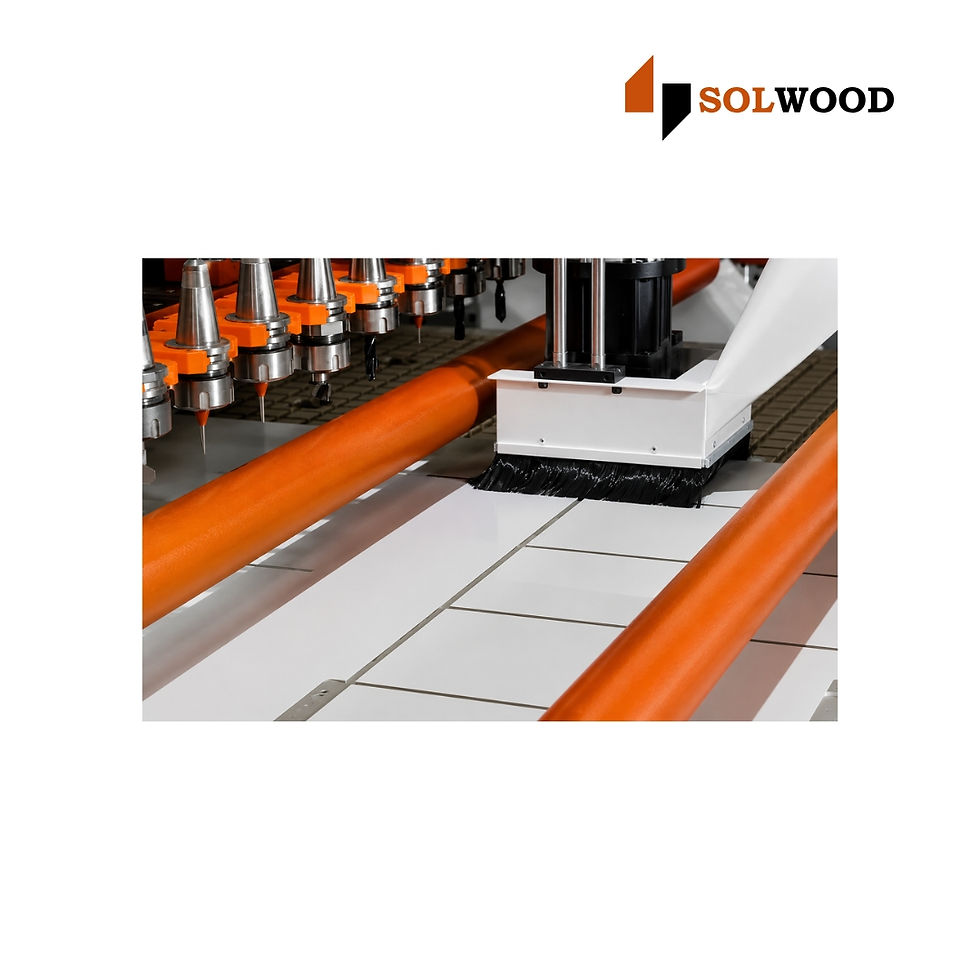

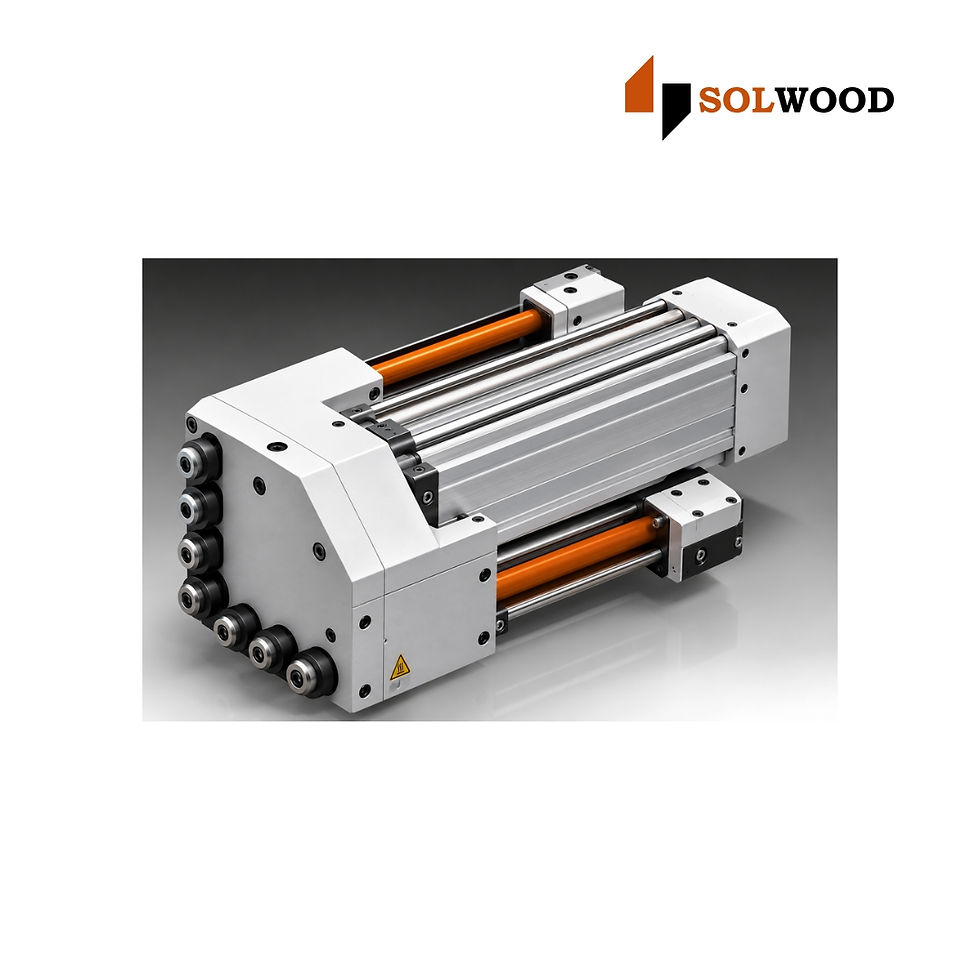

Tool Magazine Type: 12 Tools – Linear Type Automatic Tool Changer (ATC)
Saw Blade - Cutting & Grooving
Tool Change: Fast and automatic for high productivity
Table & Holding System

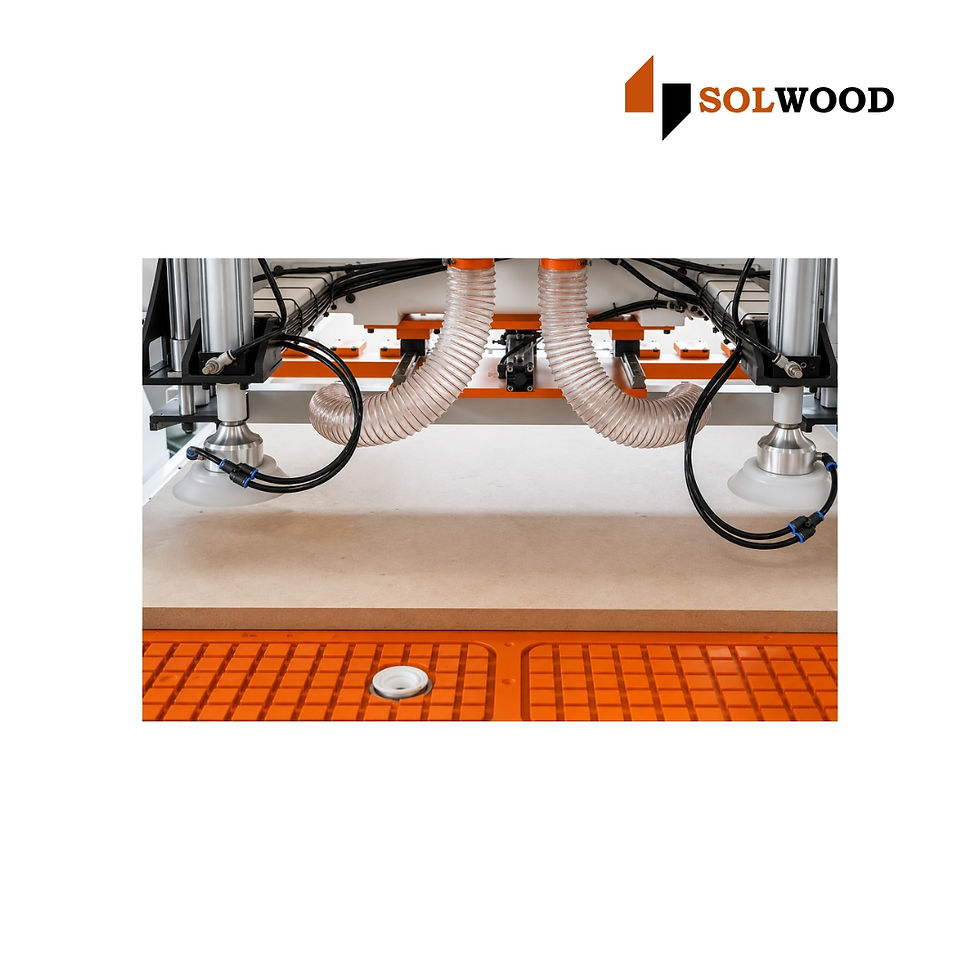

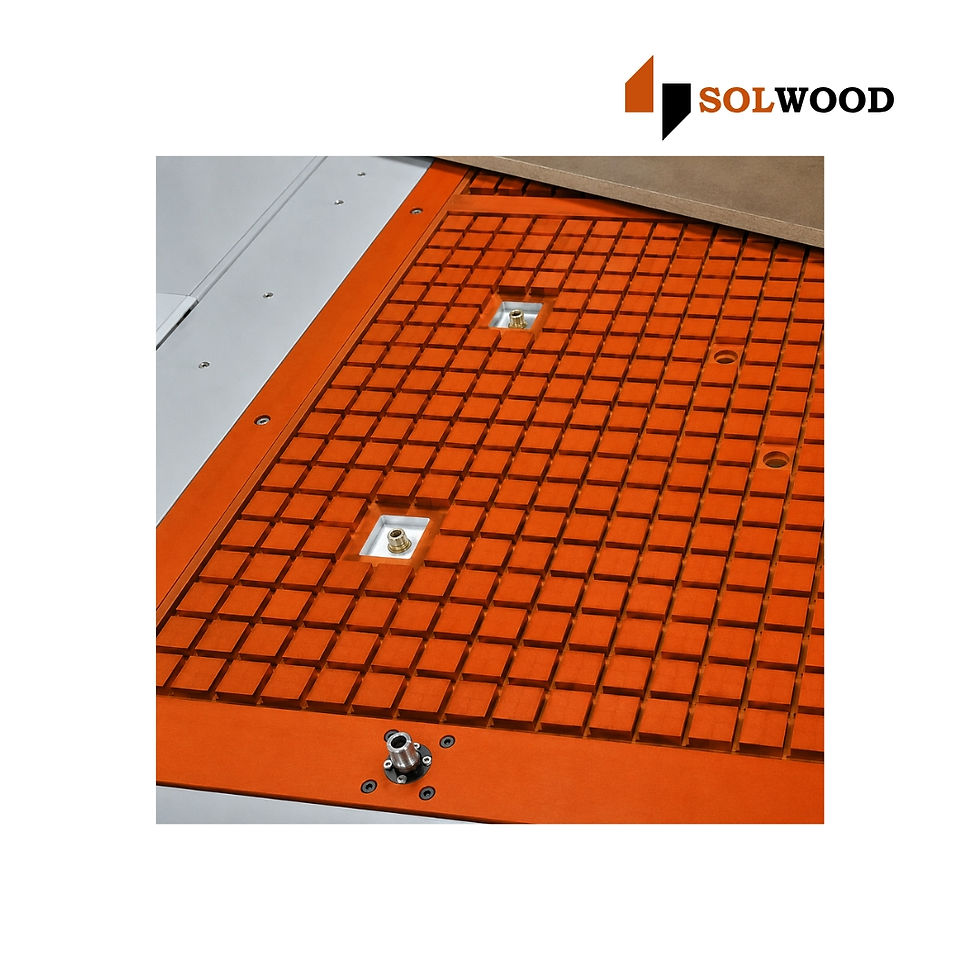

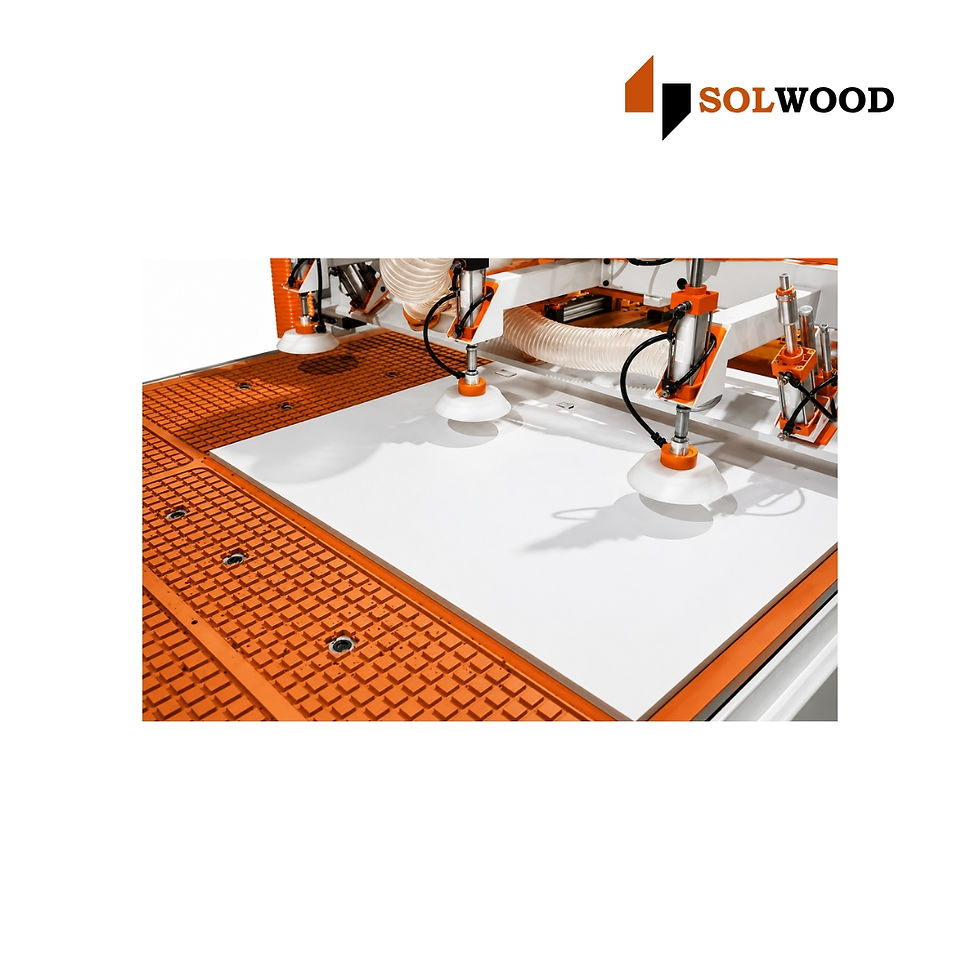

Table Type: Vacuum Table Design

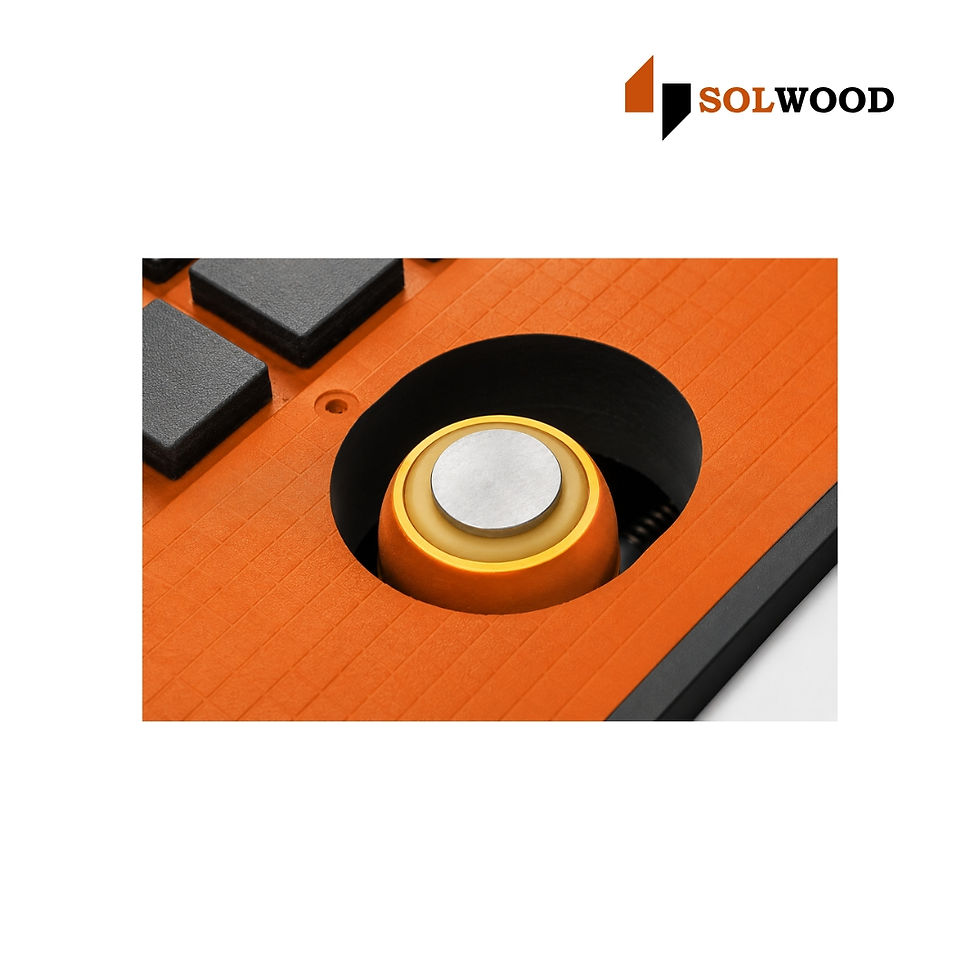

Vacuum Zones: Multi-zone vacuum clamping
Vacuum Pump: EUROVAC Air-Cooled Vacuum Pump – 7.5 KW
Vacuum Performance: Strong suction for sheet stability
Pressing Rollers - 2 Nos.
Automatic Loading & Unloading System

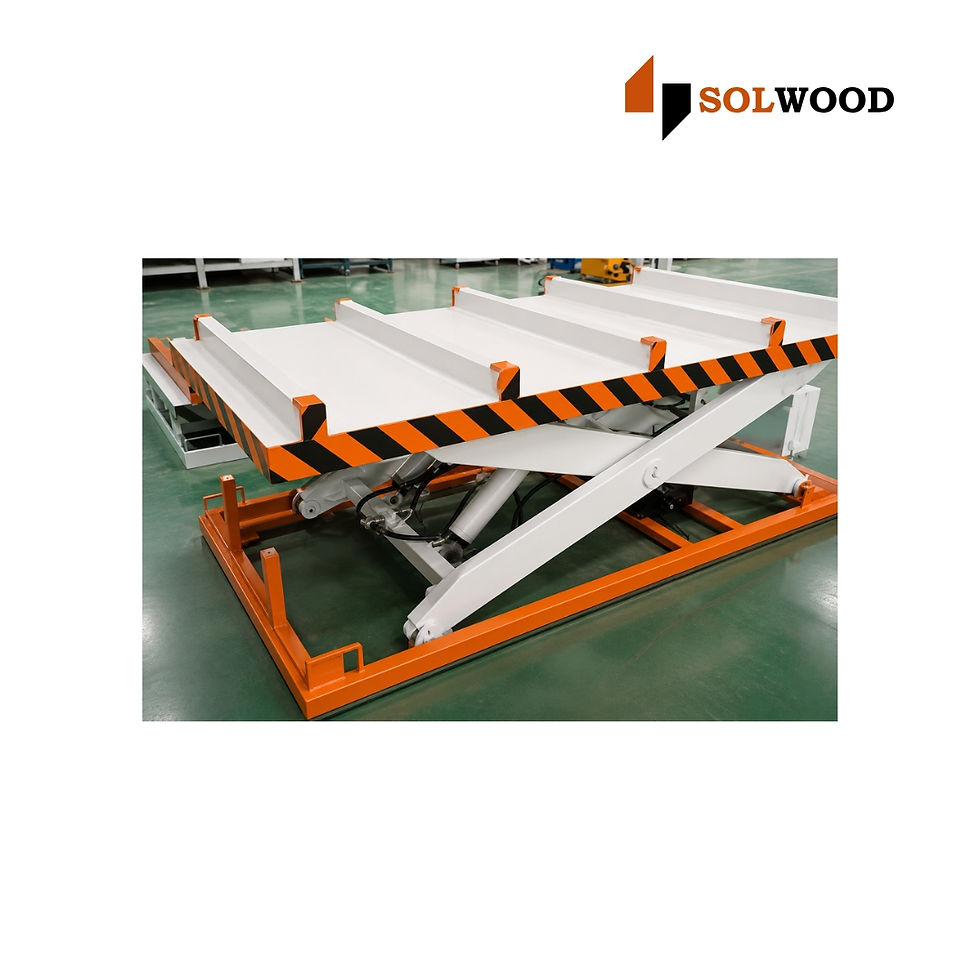

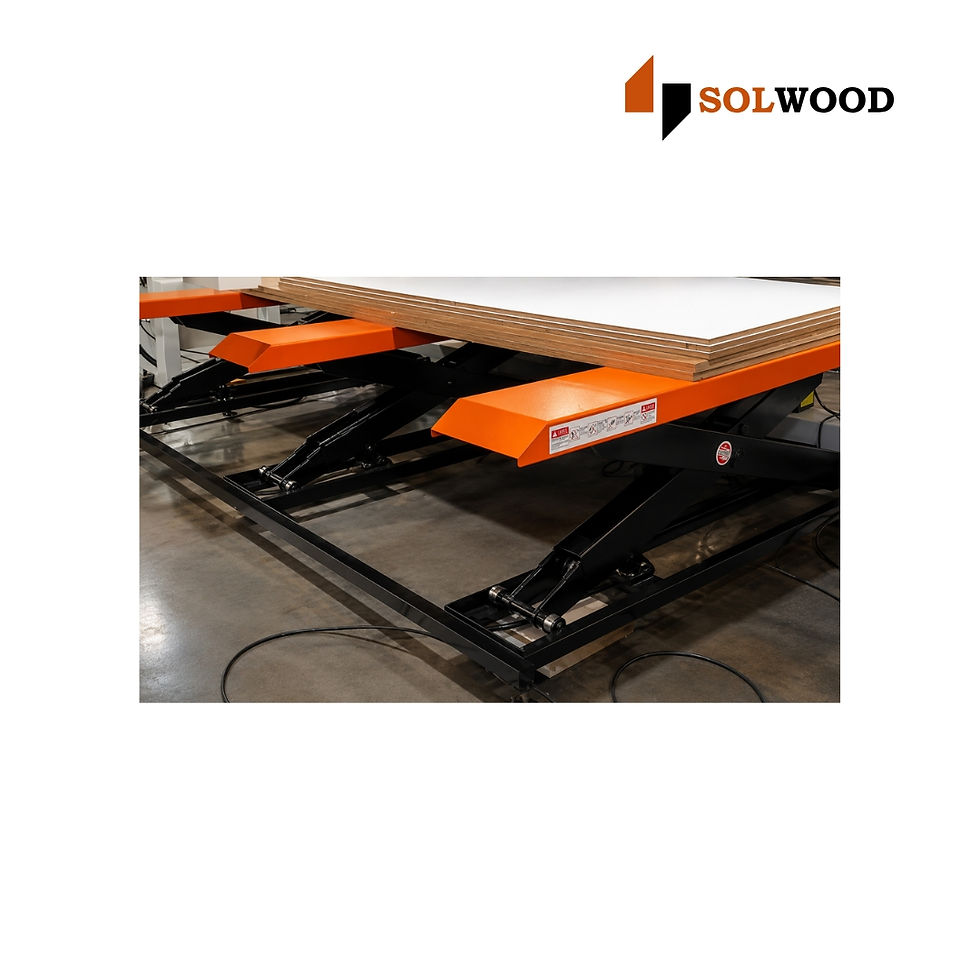

Loading & Unloading Platform: Automatic Hydraulic Lifting & Discharging Platform
Roller Type: Thickened Grooved Rubber-Coated Roller
Roller Diameter: 90 mm
Material Handling: Smooth and damage-free panel movement
CNC Nesting Machine – Technical Highlights
Working Voltage: AC 415V
Working Area (X × Y): 1300 × 2800 mm
Linear Guide Rails: Y Axis – 25 mm | X Axis – 20 mm
Rack & Pinion: X / Y Axis – Module M = 1.5

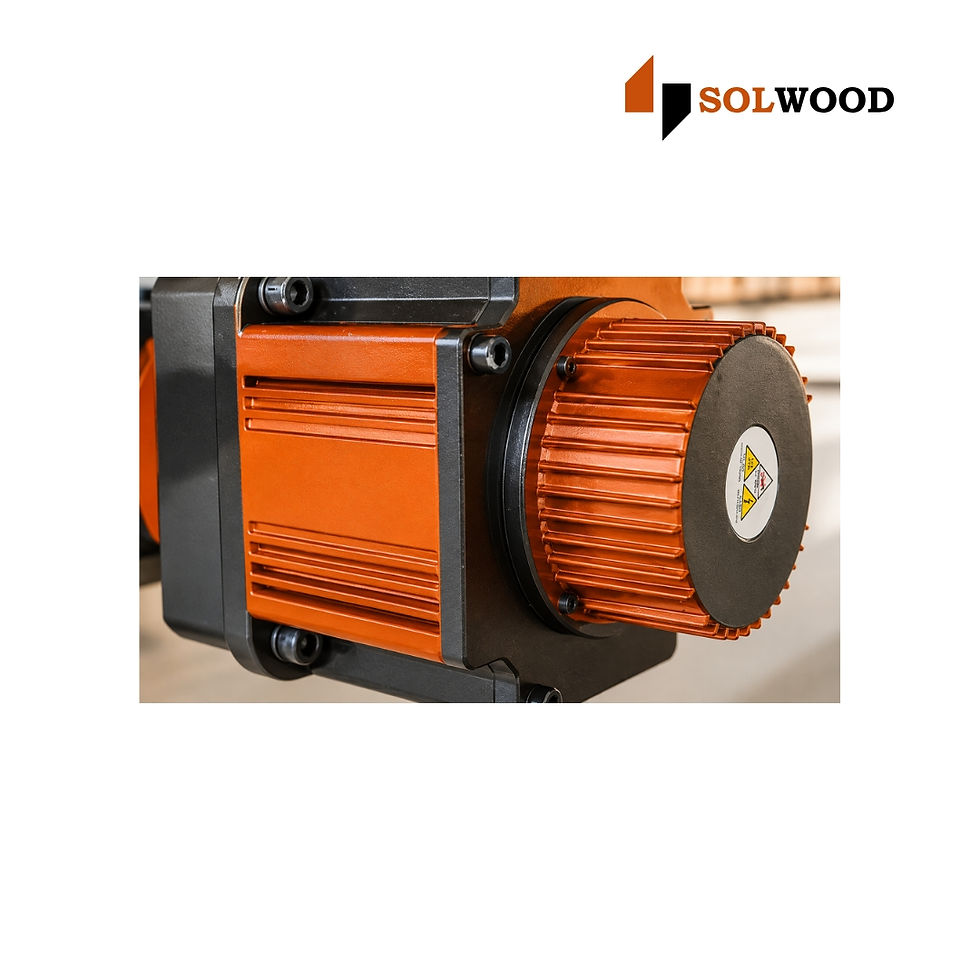

Servo Motors: 750 W × 2 Sets
Running Speed: X Axis – 35 m/min | Y Axis – 35 m/min
Application: CNC Nesting, Modular Furniture & Panel Processing Lines
Operation: High-speed, accurate & industrial-duty performance
Accuracy & Performance
Positioning Accuracy: ±0.02 mm
Repeatability: High-precision industrial performance
Production Capability: Continuous heavy-duty operation
