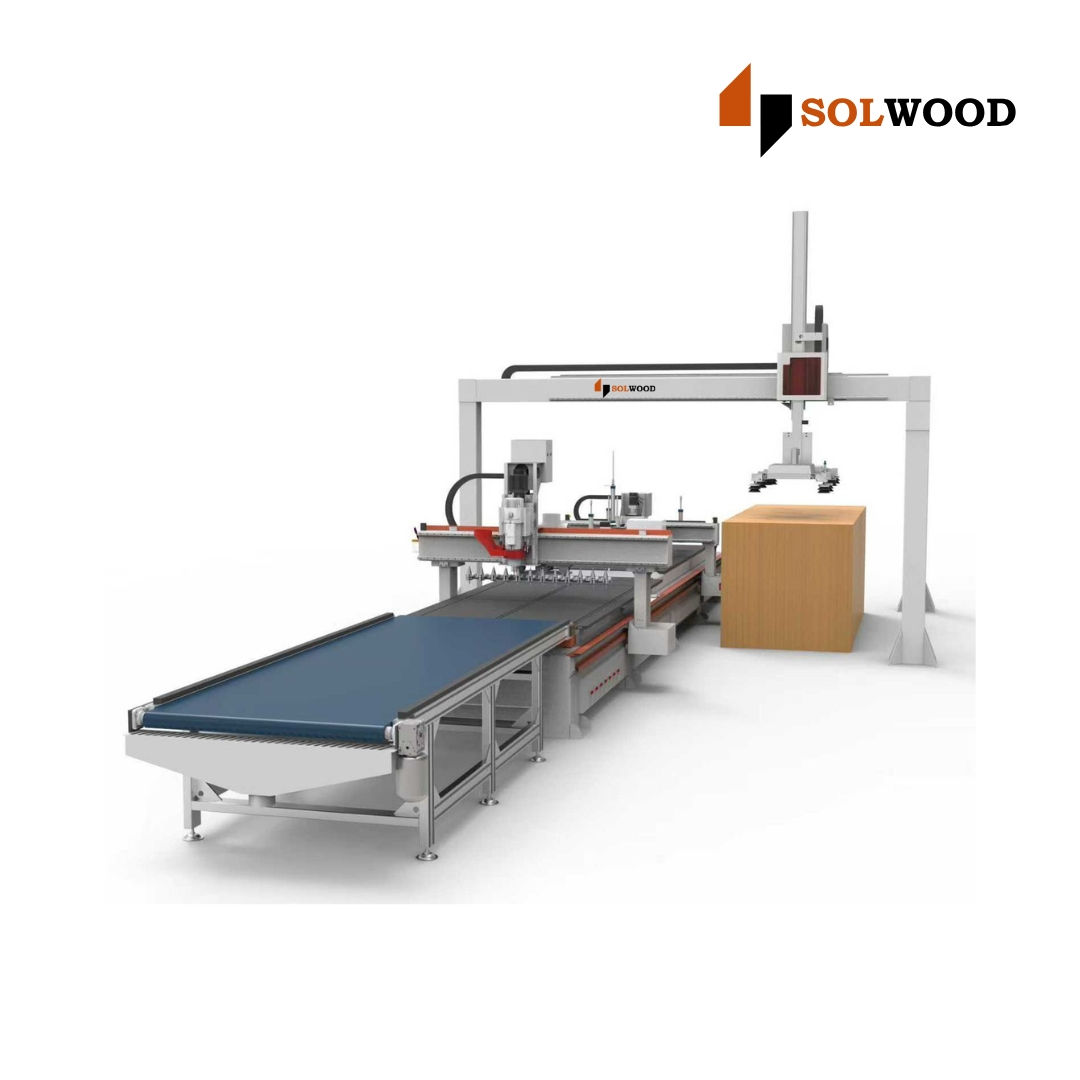

CNC Nesting Line with Robotic Arm Feeding - SCN-94ZLR2 - 9 KW

SOLWOOD CNC Nesting Line with Robotic Arm Feeding
Model No. : SCN-94ZLR2 - 9 KW

Machine Overview
SOLWOOD CNC Nesting Line is an advanced automated solution designed for high-efficiency panel processing. Integrated with a robotic gantry feeding system and automatic labeling, this machine ensures precision, speed, and minimal manual intervention—ideal for modular furniture and mass production environments.

Technical Specifications
Working Area
X-Axis Travel: 1220 mm
Y-Axis Travel: 2800 mm
Z-Axis Travel: 200 mm
Maximum Board Thickness: 50 mm

Performance
Spindle Power: 9 kW HQD air-cooled spindle
Spindle Speed: 0 – 35,000 RPM
Servo Motors: 1.5 kW YTD x 3 Nos. (X, Y, Z Axis)
Processing Efficiency: High-speed nesting with labeling integration

Drive & Motion System
Linear Guide Rails (X/Y/Z): 25 mm Taiwan KINTEK
Gearbox: Shimpo (Japan) reducer
Motion Control: High precision servo-driven system

Control System & Software
Control System: Taiwan Syntec control system/ Weihong System
Electrical Components: Schneider electrics
Control Cabinet: Separate large cabinet with inbuilt air conditioner and ON/OFF control

Spindle & Structure
Spindle Type: HQD 9 kW air-cooled high-speed spindle
Machine Structure: Heavy-duty industrial frame
Spindle Protection: Safety spindle cover

Automatic Nesting Line Components
Robotic Gantry Feeding System
Automatic loading of panels for continuous production
CNC Labeling Machine
Integrated labeling unit for part identification and tracking
Label Printer Size: 80 mm × 60 mm
Automatic Belt Unloading Table
Efficient unloading system for finished panels

Worktable & Vacuum System
Table Type: Vacuum adsorption table
Vacuum Zones: 6 zones
Vacuum Pump: 7.5 kW air-cooled pump (Eurovac Taiwan)

Automation Features
Fully automatic nesting, labeling, and cutting process
Reduced manual handling with robotic feeding system
High production efficiency with continuous workflow
Smart panel identification through labeling integration
