CNC Router - Four Head - SC-124-4-AS - 9 KW
SOLWOOD CNC Four Head Router Machine – Technical Specifications
Machine Overview
Machine Type: CNC Four Head Router Machine
Brand: SOLWOOD
Application: CNC cutting, engraving, carving and routing for wood-based panels and sheet materials
Structure: Heavy duty industrial machine body designed for high stability and long working life
Working Area & Axis Travel
X & Y Axis Working Area: 3800 × 1300 mm
Z Axis Working Area: 200 mm
Axis System: X, Y, Z precision motion system
Performance: Smooth movement and high repeatability suitable for continuous production
Spindle System

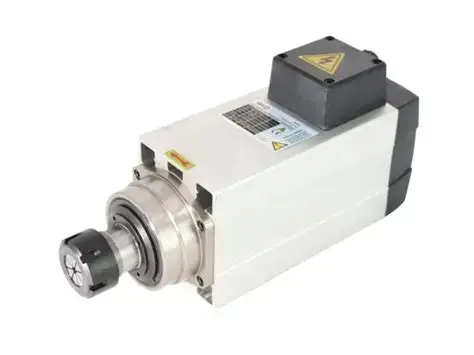

Spindle Power: 9.0 kW SOLWOOD Spindle x 4 Nos.
Spindle Type: Air Cooling Spindle (Solwood Make)
Spindle Configuration: Four Head System
Advantage: Multiple head routing increases production speed and supports bulk manufacturing
Control System
Control Type: NC Control System
Operation: Easy-to-use CNC controller for fast job execution
Accuracy: Provides stable and precise control for cutting and carving operations
Inverter System
Inverter: Best Inverter
Function: Controls spindle speed smoothly and ensures stable working performance
Benefit: Improves spindle efficiency and protects machine components during heavy cutting
Motor & Drive System
Motor Type: Leadshine Hybrid Servo Motor
Drive Type: Leadshine Hybrid Servo Drive
Performance: High speed, high torque and better accuracy than standard stepper motor system
Benefit: Reduces vibration, improves cutting quality and enhances machine stability
Linear Motion & Guide System
Rail Guide Type: 20mm Rail Guide
Guide Type: Linear square rail system for high accuracy
Z Axis Ball Screw: Taiwan TBI Ball Screw
Advantage: Strong and precise Z-axis movement with long service life
Working Table System
Table Type: T-Slot Table
Function: Easy workpiece clamping using clamps and fixtures
Suitable Material Holding: MDF, plywood, WPC, acrylic, PVC sheet, wooden boards
Lubrication System
Lubrication Type: Automatic Oil Lubrication System
Function: Provides automatic lubrication for rails and ball screws
Benefit: Reduces wear & tear, improves smooth running and increases machine durability
Sensor & Safety System
Sensor Type: Square Type Sensor
Limit Switch: Japan OMRON Limit Switch
Benefit: Ensures accurate machine positioning and protects axis travel from overrun
Cable Management System
Towline Type: Highly flexible towline system
Cable Type: Fire-resistant double sheathed cable
Advantage: Protects wires from damage during high-speed machine operation
Software Compatibility
Supported Software: Wentai Carving Software
Function: Used for design programming, carving and CNC job processing
Suitable For: 2D cutting, engraving, carving and decorative designs
Machine Frame & Body Structure
Machine Body Type: Heavy duty type machine body with strong side plate
Bed Frame: Heavy duty industrial bed frame structure
Advantage: Vibration-free performance and improved cutting accuracy
Tool Calibration System
Tool Calibrator System: Included
Function: Helps find accurate working home position
Benefit: Faster job setting and improved operational accuracy
Brake System
Brake Feature: Z Axis with Brake
Benefit: Prevents Z-axis dropping during power failure and improves safety
Reducer System
Reducer Brand: China Brand Reducer
Function: Improves transmission torque and supports smooth axis movement
Benefit: Better performance in heavy duty cutting operations
Key Features / Highlights
Large working size 3800 × 1300 mm suitable for full sheet processing
Four head spindle system for faster production output
6.0kW SOLWOOD air cooling spindle for heavy duty cutting
Leadshine hybrid servo motor & drive system for high precision
Taiwan TBI ball screw for Z-axis smooth vertical movement
Automatic lubrication system for low maintenance
Japan OMRON limit switch for high safety and accuracy
Strong bed frame for vibration-free operation
