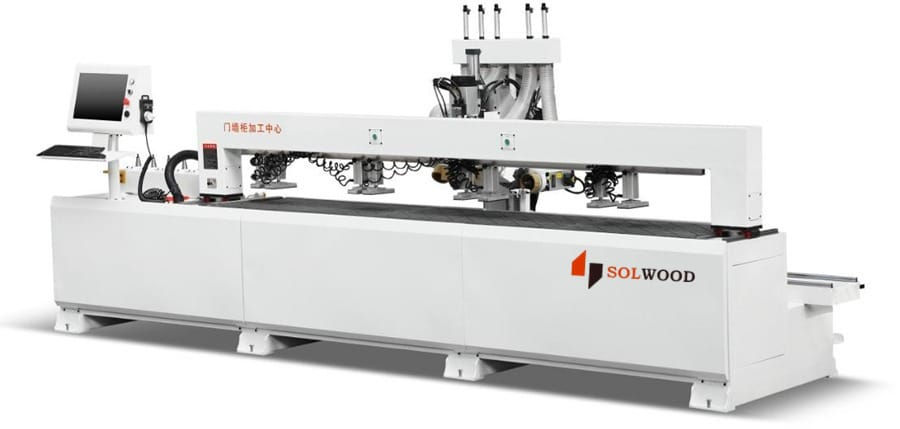

CNC Side Drilling & Hinge Drilling Machine with 45° Spindle
CNC Side Drilling & Hinge Drilling Machine with 45° Spindle
Control & Motion System
CNC Controller: Taiwan Baoyuan Control System – stable, fast processing, industrial-grade automation
Drive System: High-precision servo-driven motion control
Servo Motors:
1500W Servo Motor × 2 Nos.
750W Servo Motor × 1 No.
Reducer: Heavy-duty Planetary Reducer for accurate torque transmission
Linear Guideways: Taiwan Senburgler Guides for smooth, vibration-free movement
Rack & Pinion: Bright Tooth High-Precision Ground Rack – 1.5mm Helical Type for high positioning accuracy and long life
Inverter: Wade Industrial Inverter for speed stability and protection
Spindle Configuration
Main Spindle: 6kW Air-Cooled High-Speed Spindle
Additional Spindles: 3 Nos. × 3.5kW Spindles for multi-operation drilling
ATC Spindle: 1 No. × 6kW Automatic Tool Change Spindle for flexible operations
Supports: High-speed drilling, angled drilling, blind holes, dowel holes, slotting, and hinge processing
Electrical & Electronic Components
Electrical System: CHINT Industrial Electrical Components (reliable protection & durability)
Sensors: American Banner Sensors for precise detection and positioning
Machine Wiring: Industrial-grade electrical layout suitable for continuous production
Working Area & Mechanical Structure
Worktable Calibrated Travel: 3050 mm
Machine Dimensions: 4900 × 1400 × 1300 mm (Length × Width × Height)
Structure: Heavy-duty rigid body design for vibration-free operation
Designed for continuous industrial use in modular furniture production
Functional Capabilities
Three-in-One Drilling: Side Hole / Dowel Hole / Blind Hole
45° Lamino & Hinge Drilling Function
Slotting Function for connectors and fittings
Barcode Scanning Support for smart production workflow
Invisible Parts Drilling
Invisible Handle Drilling
Straightener Function for precise panel positioning
