Edge Banding Return Conveyor - SRC - 1224 - 9M

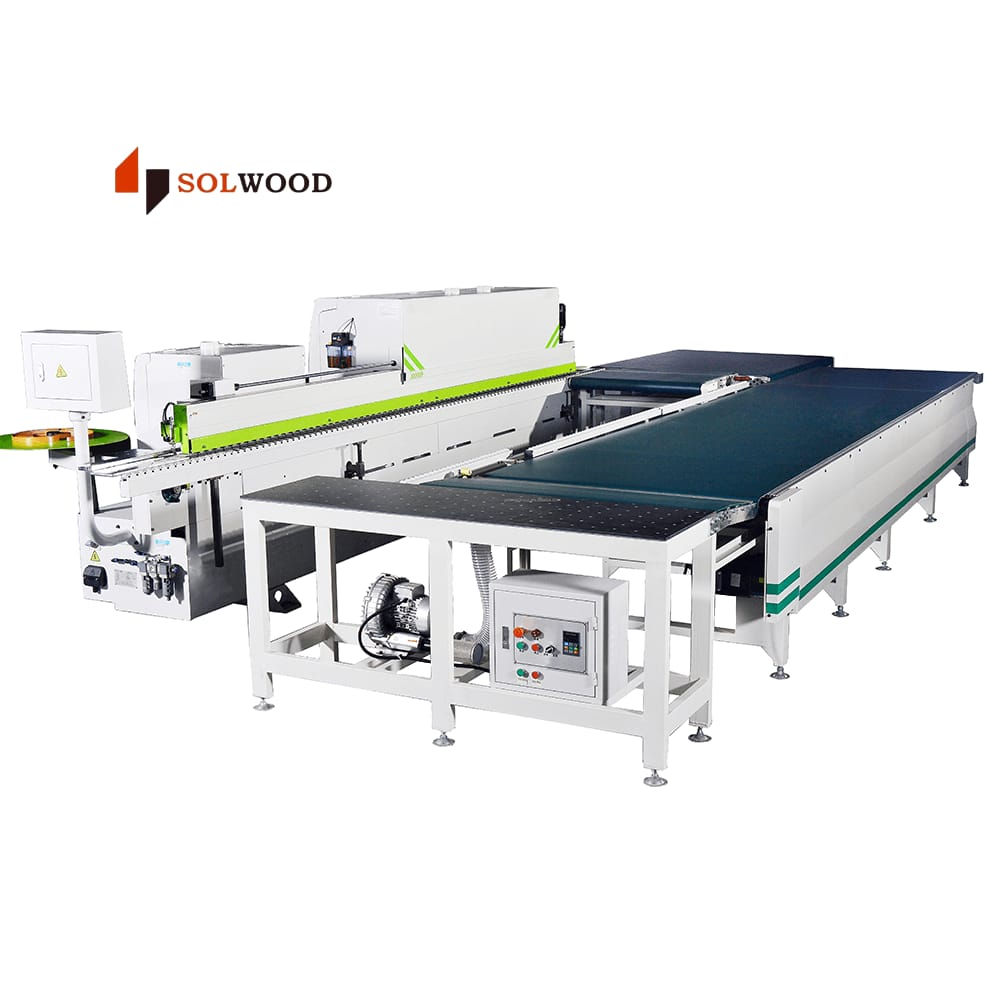

SOLWOOD – Return Conveyor for Edge Banding Machine
Model No. : SRC-1224-9M

The SOLWOOD Return Conveyor for Edge Banding Machine is designed to improve workflow efficiency by automatically returning finished panels back to the operator. It reduces manual handling, saves labor, and increases production speed during edge banding operations. Ideal for panel furniture manufacturers and modular furniture production lines.
Key Technical Specifications
Model Type: Return Conveyor for Edge Banding Machine
Total Conveyor Length: 11,000 mm
Conveyor Belt
Belt Thickness: 2.0 mm
Belt Type: Heavy-duty dark green PVC belt
Belt Width: 1320 mm
Maximum Workpiece Length
Up to 2.5 meters
Conveyor Side Frames
40 × 80 × 2.0 mm aluminum profile construction
Durable and corrosion-resistant structure
Support Legs
40 × 80 × 1.2 mm carbon steel material
Strong support with long operational life
Belt Support System
Galvanized rollers with support plates
Smooth panel movement with reduced vibration
Working Height
Conveyor surface height: 850 mm from floor
Height Adjustment
Adjustable leveling feet
Vertical adjustment range: ±100 mm
Drive System
Operating Voltage: 415V
Motor Configuration
Table 1 Motor: 0.25 kW
Table 2 Motor: 0.40 kW
Table 3 Motor: 0.75 kW
Speed Control
Branded inverters included
Adjustable speed range: 0–28 m/min
Dual inverter control for independent table section speed adjustment
Equipment Dimensions
Table A: 1000 × 500 × 850 mm
Table B: 1850 × 1500 × 850 mm
Table C: 11000 × 1250 × 850 mm
Standard Accessories Included
5 meters aluminum alloy flow strips
Tool kit
Screws
Wrenches
Anti-collision wheels
Installation tools
Key Benefits
Automatic panel return to operator
Reduces manpower requirement
Improves edge banding productivity
Smooth and stable material movement
Adjustable speed for different production requirements
Strong industrial-grade construction
Suitable for modular furniture and panel processing lines
