Edge Banding & Trimming Machine - SC-510
SOLWOOD Edge Banding & Trimming Machine
Model No. : SC-510
Machine Overview
The SOLWOOD SC510 Edge Banding & Trimming Machine is a high-performance automatic irregular edge banding solution specially designed for modern furniture and panel industries. The machine supports multiple irregular edge profiles with precision edge banding, trimming, scraping, polishing, and gluing operations in a single workflow.
Designed with intelligent automation, advanced pressing technology, and high-precision milling performance, the JC510 ensures excellent finishing quality and stable production efficiency.
Technical Specifications :
| Parameter | Specifications |
|---|---|
| Model | SC-510 |
| Voltage | 380V / 3P4H / 50Hz |
| Total Power | 72 kW |
| Air Pressure | 0.6 – 0.8 MPa |
| Air Tank Capacity | 5L + 5L |
| Machine Dimensions | 9620 × 1310 × 2060 mm |
| Feeding Speed | 9 m/min |
| Feeding Motor Power | 4 kW |
| Total Milling Motor Power | 38.9 kW |
| Glue Pot Capacity | 2600 ml |
| Glue Type | EVA |
| Glue Pot Position | Top Mounted |
| Glue Temperature Range | 110°C – 210°C |
Edge Banding Strip Specifications
Supported Material
- PVC edge banding strips recommended
- Matte surface edge banding preferred
Edge Banding Width
- 35 mm – 70 mm
Edge Banding Thickness
- Soft Forming: 0.52 mm – 0.8 mm
- Oblique Straight Edge: 0.5 mm – 2 mm
Board Size Requirements
| Parameter | Specifications |
|---|---|
| Minimum Board Size | ≥ 380 × 150 mm |
| Edge Sealing Direction | 380 mm |
Supported Board Shapes
The machine supports 21 standard irregular edge profiles including:
- All-pass J Shape
- C Shape
- Half-pass J Shape
- Diamond Shapes
- Water Drop Shapes
- Rhombus Shapes
- Arc Shapes
- Oblique Straight Shapes
- Front, Middle & Rear Circle Profiles
Provides excellent flexibility for decorative furniture and customized panel production.
Glue Pot System
- Top mounted glue pot design
- EVA glue support
- Stable heating system
- Temperature adjustable from 110°C to 210°C
- Optional PUR double glue pot customization available
High Precision Milling System
- Total milling motor power: 38.9 kW
- Precise milling accuracy ≤ 0.2 mm
- High-speed milling performance
- Stable trimming and shaping quality
- Designed for irregular edge processing applications
Board Thickness Compatibility :
| Board Thickness | Recommended Strip Width |
|---|---|
| 18 mm | 52 – 55 mm |
| 22 mm | 55 – 60 mm |
| 25 mm | 55 – 62 mm |
Automatic Feeding System
- Feeding speed up to 9 m/min
- 4 kW feeding motor
- Automatic lifting and lowering pressure beam
- One-click height adjustment from touch screen
- Smooth and stable feeding operation
Intelligent Control System

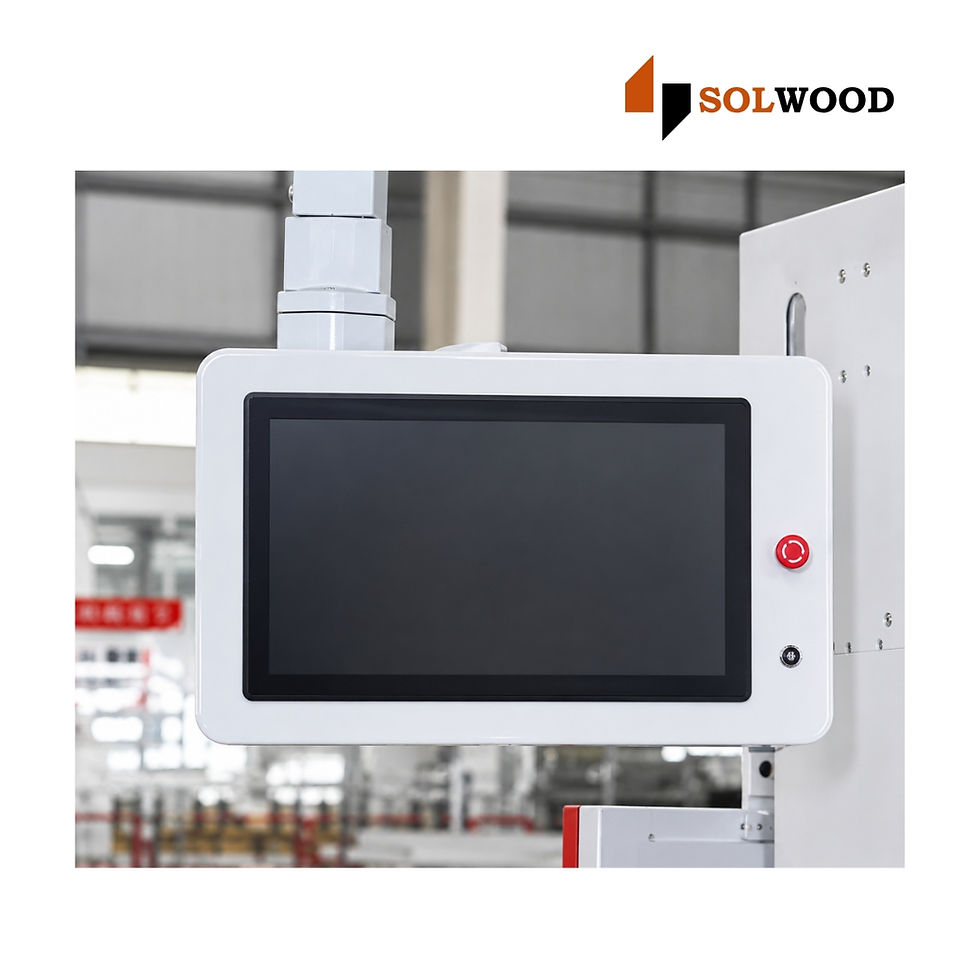

- 21.5-inch industrial touch screen
- One-click language switching between Chinese & English
- Additional language customization available
- Supports remote software upgrades
- One-touch switching between 21 edge profiles
- User-friendly operating interface
Advanced Pressing System
- 14-component step-by-step pressing structure
- Individual air pressure adjustment for each section
- Stable and accurate edge pressing
- Integrated centrifugal cooling fan
- Built-in air conditioning system for temperature control
Complete Manufacturing Process
The machine performs the following operations automatically:
- Board Shape Milling
- Edge Banding & Gluing
- Pressing
- Rough Trimming
- Front & Rear Trimming
- Fine Trimming
- Upper & Lower Edge Scraping
- Glue Cleaning
- Upper & Lower Polishing
