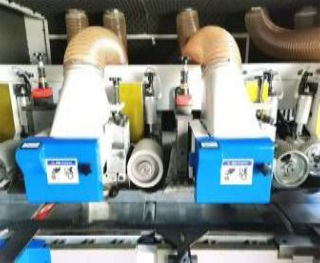

Five Spindle Moulder - S-518DS

S-518DS – Five Spindle Moulder (SOLWOOD – China)

Technical Specifications
Working Width: 25 – 180 mm
Working Thickness: 8 – 130 mm
Min. In-feed Length: 300 mm
Feeding Speed: 5 – 40 m/min
Spindle Diameter: Ø40 mm
Spindle Speed: 7000 RPM
Air Pressure: 0.6 MPa
Trimming Blade Diameter: 150 mm

Spindle Configuration & Power
1st Bottom Spindle: 4 kW (5.5 HP)
Right Spindle: 5.5 kW
Left Spindle: 5.5 kW
1st Top Spindle: 5.5 kW
2nd Top Spindle: 5.5 kW
Feeding Motor: 4 kW (5.5 HP)
Total Power: 30.75 kW

Spindle Cutter Diameter
Bottom Spindle: Ø125 mm
Right Spindle: Ø125 – Ø160 mm
Left Spindle: Ø125 – Ø160 mm
Upper Spindles: Ø125 – Ø160 mm

Machine Details
Dust Outlet: 5 × 150 mm
Overall Dimensions: 3770 × 1650 × 1900 mm
Weight: 3200 kg
Cutterheads: Included

Key Features & Advantages
1. Feeding Frequency Inverter
Digital display for easy operation
Energy-efficient system
Reduces mechanical wear & increases machine life

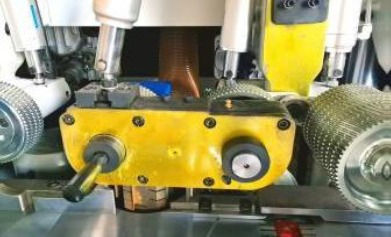

2. Quick Liftable Short Material Device
Smooth feeding of short wood pieces
Auxiliary feeding rollers improve material flow
Liftable rollers allow quick knife adjustment
3. Precision Spindle System
All cutter shafts assembled in controlled environment
Equipped with **SKF bearings for high accuracy
Ensures excellent surface finish quality
4. User-Friendly Operation
Feeder switch & emergency (scram) switch
Easy control and safe operation
5. Heavy-Duty Cutting Gear Case
Cardan joint transmission ensures strong power delivery
Smooth, stable & precise feeding performance
Maintenance-free universal transmission system
Long service life with robust construction
6. Adjustable Pressing System
Independent front & back pressure plates
Maintains stability even with variable thickness materials
7. Double-Deck Worktable
Dual-side support for improved vertical accuracy
Ensures precise and consistent machining
8. High-Efficiency Drive System
Permanent magnet motor directly connected to reducer
Higher efficiency, lower vibration
Stable and powerful performance
