High Frequency Press - Plybending - 3 Direction

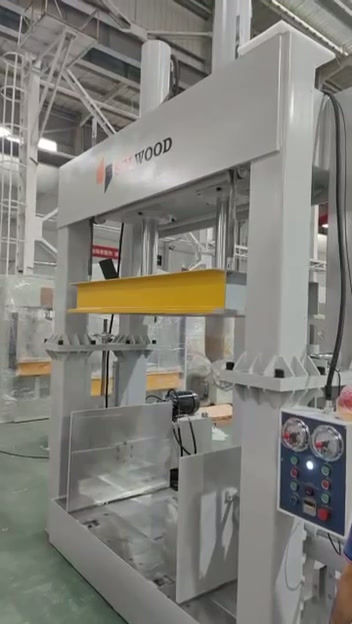

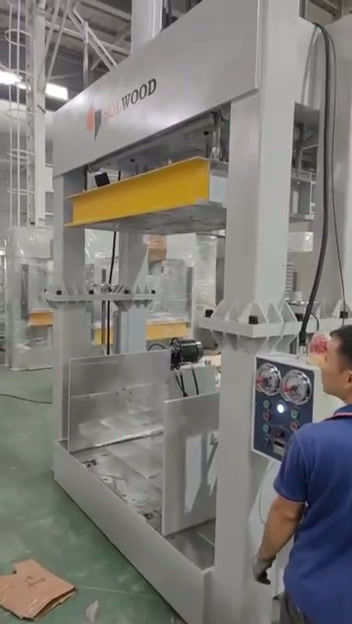

🏭 SOLWOOD SJQW1508-Y100(120) High-Frequency Press – Ply Bending

Detailed Technical Specifications
📌 1. General Overview
The SOLWOOD SJQW1508-Y100(120) is a high-frequency hot press machine designed for efficient panel lamination, plywood bonding, veneer pressing, and composite processing in furniture manufacturing, woodworking industries, and panel production lines.
It combines robust pressure systems, precise frequency control, and adjustable press settings to deliver consistent bonding quality, high production capacity, and excellent material finish.
⚡ 2. Electrical & Power System
Power Supply: AC 380V / 50Hz (Three-Phase) — standard industrial format for reliable heavy-duty operation.
High-Frequency (HF) Power Range: 20 – 30 kW
Enables strong and stable dielectric heating for rapid and uniform curing/pressing of adhesives.
Adjustable power ensures optimal heating for different materials.
Rated Frequency: 6.78 – 13.56 MHz
Ideal frequency band for wood and composite panel pressing — balancing penetration depth and heating speed.
📏 3. Working Table & Press Configuration
Table Dimensions: 1500 × 800 mm
A spacious working area suitable for medium-sized panels, boards, and laminates.
Supports efficient batch processing without frequent reloading.
Vertical Pressure Capacity: 80 – 100 Ton
Strong vertical pressing force ensures tight bonding and minimal voids between layers.
Adjustable range allows customizing pressure based on material thickness and adhesive type.
Horizontal Pressure Capacity: 20 Ton
Provides lateral stabilization to support uniform pressing and minimize edge lifting.
Output Method: Single or Double Output
Single Output: One pressing operation per cycle (standard mode).
Double Output: Dual output mode available for increased throughput (depends on configuration and workflow setup).
🔥 4. Heating & Process Control
High-Frequency Heating System (HF):
Uses electromagnetic induction to heat adhesive layers quickly from inside-out.
Produces even pressure distribution and deep adhesive activation, reducing processing time vs. traditional hot plates.
Customizable Frequency & Power:
Operators can tune HF power and frequency within the rated range to match different material stacks and board types (laminate, plywood, HPL, MDF, particle board).
Control Precision:
Ensures consistent temperature and pressure curves to minimize material defects and improve finished panel quality.
