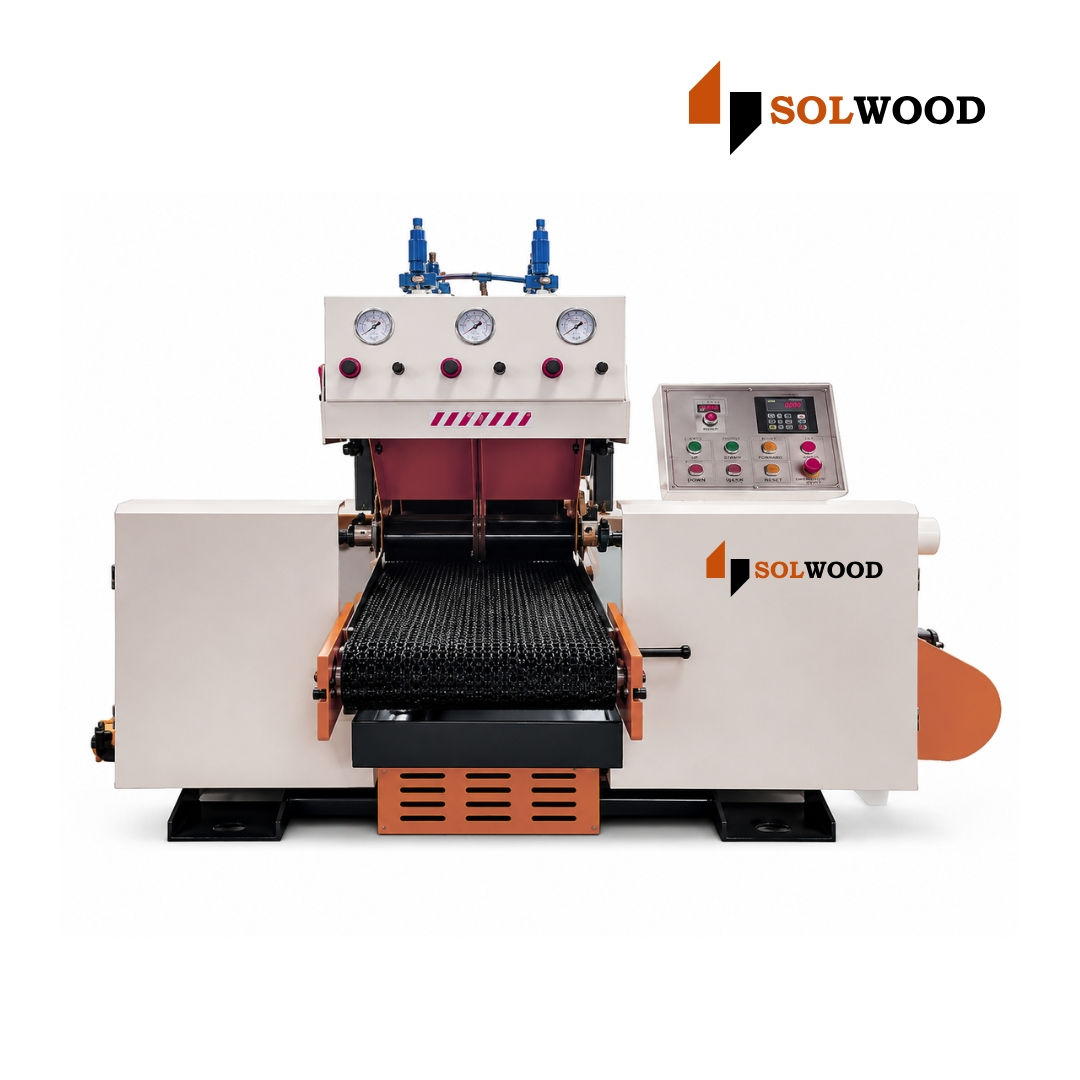

Horizontal Band Saw - SCP-400EP
The SCP-400EP Horizontal Band Saw is a high-performance industrial cutting machine designed for precision cutting of wood panels, boards, and solid wood materials. Equipped with a powerful 15 kW main motor, hydraulic blade tensioning system, and pneumatic wood compression, it delivers smooth, accurate, and efficient cutting while maintaining operator convenience through easy push-button controls.
Built for continuous production environments, the TCP-400EP offers adjustable feeding speeds, robust construction, and reliable cutting performance, making it an ideal solution for furniture manufacturers, woodworking facilities, modular furniture plants, and panel processing industries.
Key Features
✔ Powerful 15 kW main motor for heavy-duty cutting operations
✔ Large 400 mm cutting width and 300 mm cutting height capacity
✔ Variable feeding speed up to 30 m/min for optimized productivity
✔ Hydraulic blade tensioning system for consistent cutting accuracy
✔ Pneumatic wood compression ensures material stability during operation
✔ User-friendly push-button control panel
✔ Durable industrial-grade construction for long service life
✔ Efficient dust extraction provision with dual 102 mm dust outlets
✔ High-precision cutting with a 600 mm saw wheel diameter
Technical Specifications
| Specification | Details |
|---|---|
| Model | SCP-400EP |
| Machine Type | Horizontal Band Saw |
| Cutting Width | 400 mm |
| Cutting Height | 300 mm |
| Distance Between Blade & Table | 3–200 mm |
| Saw Wheel Diameter | 600 mm |
| Working Table Width | 385 mm |
| Feeding Speed | 0–30 m/min |
| Main Motor Power | 15 kW |
| Blade Motor Power | 0.37 kW |
| Blade Tensioning | Hydraulic (55 kg/cm²) |
| Saw Blade Size | 4330 × 50 × 0.9 mm |
| Dust Collection Port | 102 mm × 2 |
| Material Compression | Pneumatic |
| Operation | Push Button Control |
| Power Supply | 415V / 50Hz / 3 Phase |
| Machine Dimensions | 2100 × 2200 × 1750 mm |
| Weight | 1350 kg |
Applications
- Furniture Manufacturing
- Modular Kitchen Production
- Panel Processing Plants
- Woodworking Workshops
- Timber Processing Units
- Solid Wood Component Manufacturing
- Interior & Joinery Production
