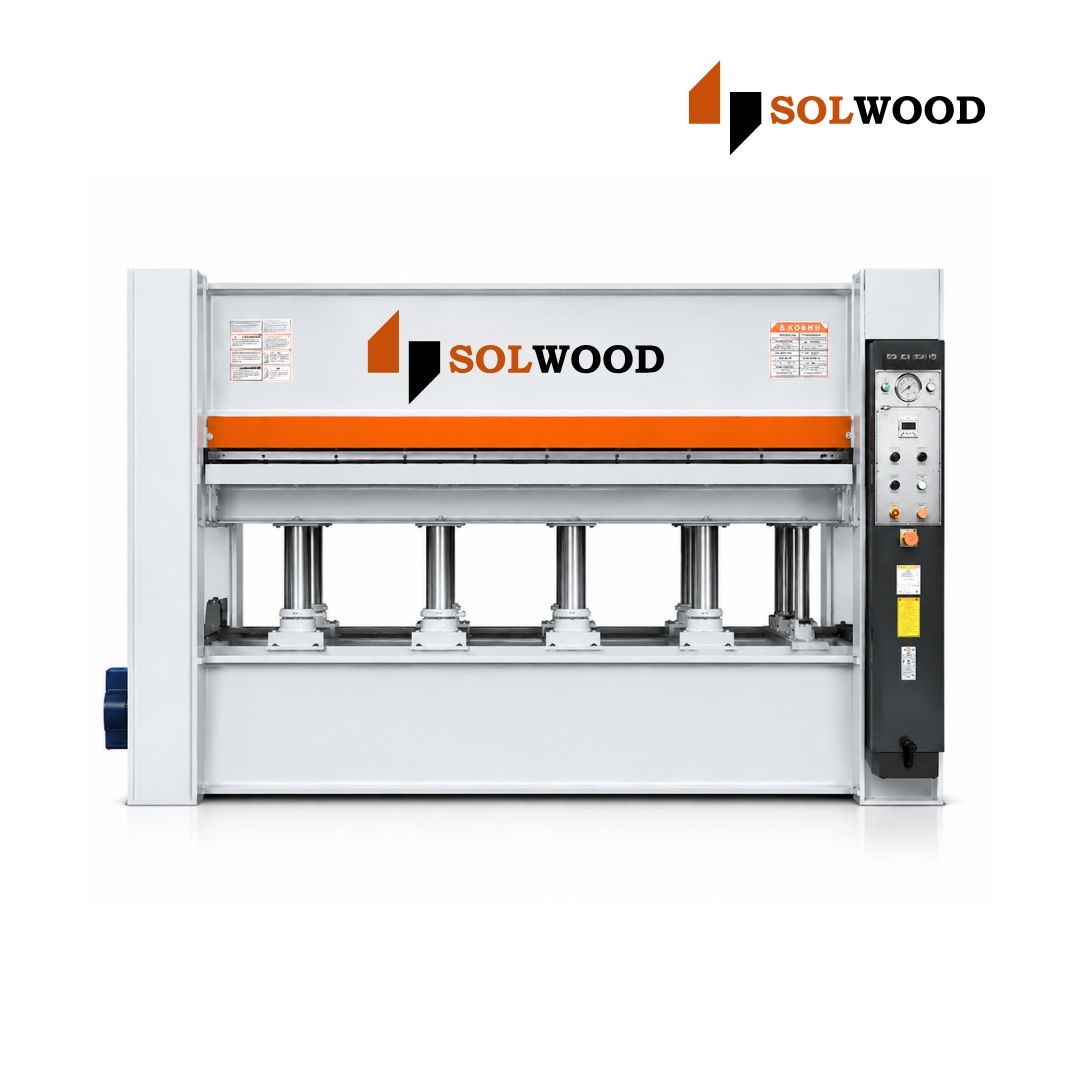

Hot Press - SHP-510-120-2 (10 Feet x 5 Feet) - Double Layer - 120T

SOLWOOD Hot Press Machine – 120 Ton, 2 Layers
Model No. : SHP-510-120-2

The SOLWOOD 120 Ton Hot Press Machine is designed for hot pressing and laminating applications in woodworking and furniture manufacturing. With a 3000 × 1500 mm hot plate, 120-ton maximum working pressure, 2 working layers and electric heating through thermal oil, the machine provides controlled pressure and temperature for consistent pressing results.
Key Features :
120-ton maximum working pressure
2 working layers for efficient production
Large 3000 × 1500 mm hot plates
Electric heating system with thermal oil circulation
Heating temperature from ambient temperature up to 120°C
Maximum opening of 100 mm
PLC-controlled operation
High-temperature-resistant film provided as standard
Stainless steel plate option available at additional cost
Heavy-duty hydraulic pressing system

Technical Specifications :
Parameter
Specification
Machine Model No.
SHP-510-120-2
Maximum Working Pressure
120 Tons
Working Layers
2 Layers
Hot Plate Size
3000 × 1500 × 42 mm
Maximum Opening
100 mm
Heating Temperature
Ambient Temperature – 120°C
Heating Method
Electric Heating
Heating Medium
Thermal Oil
Hydraulic Motor Power
5.5 kW
Thermal Oil Pump Power
2.2 kW
Heating Tube Power
48 kW
Voltage / Frequency
380 V / 50 Hz / 3 Phase
Control System
PLC Control Panel
Table Surface
High-Temperature-Resistant Film
Optional Table Surface
Stainless Steel Plate
Overall Dimensions (L × W × H)
4200 × 1900 × 2200 mm
