Intelligent Drilling and cutting all-in-one production line
SKU: SCI-94-LDN
₹45,500,000.00 Regular Price
₹40,950,000.00Sale Price
- Intelligent Drilling and cutting all-in-one production line
- Size of production line - 16000*2800*2400mm
- Working size - 1220*2400mm/1220*2800mm
- Total power - 35KW
- Labeling Machine :
- X Axis working length - 1220mm
- Y Axis working length - 2800mm
- Z Axis working length - 200mm
- Overall size 3650*1500*1500mm
- Weight 1500kgs
- Motor Power - 3.75KW

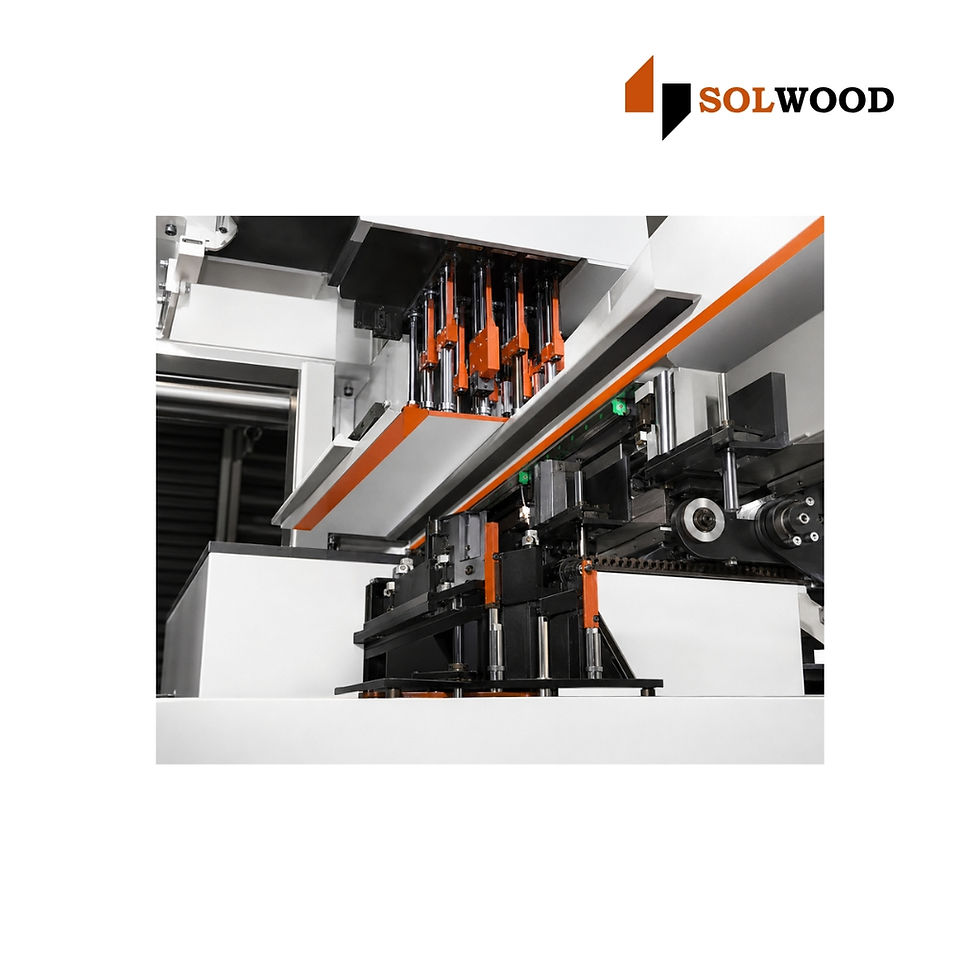

- Drilling Machine :
- Length of X-axis clamp guide rail - 5000mm
- Y-axis stroke - 1220mm
- X-axis stroke - 150mm
- Max speed of X-axis - 50000mm/min
- Max speed of Z-axis - 15000mm/min
- Min processing size - 75*30mm
- Max processing size - 1220*2800mm
- Number of top drilling tools - Vertical drilling tools 9pcs
- Number of bottom drilling tools - Vertical drilling tools 9pcs
- Main spindle - HQD 3.5*2kw
- Nesting CNC Router Machine :
- X Axis working length - 1120mm
- Y Axis working length - 2800mm
- Z Axis working length - 250mm
- Main Spindle Speed - 0-24000rpm
- Overall size - 4300*2400*2200mm
- Weight - 3500kgs
