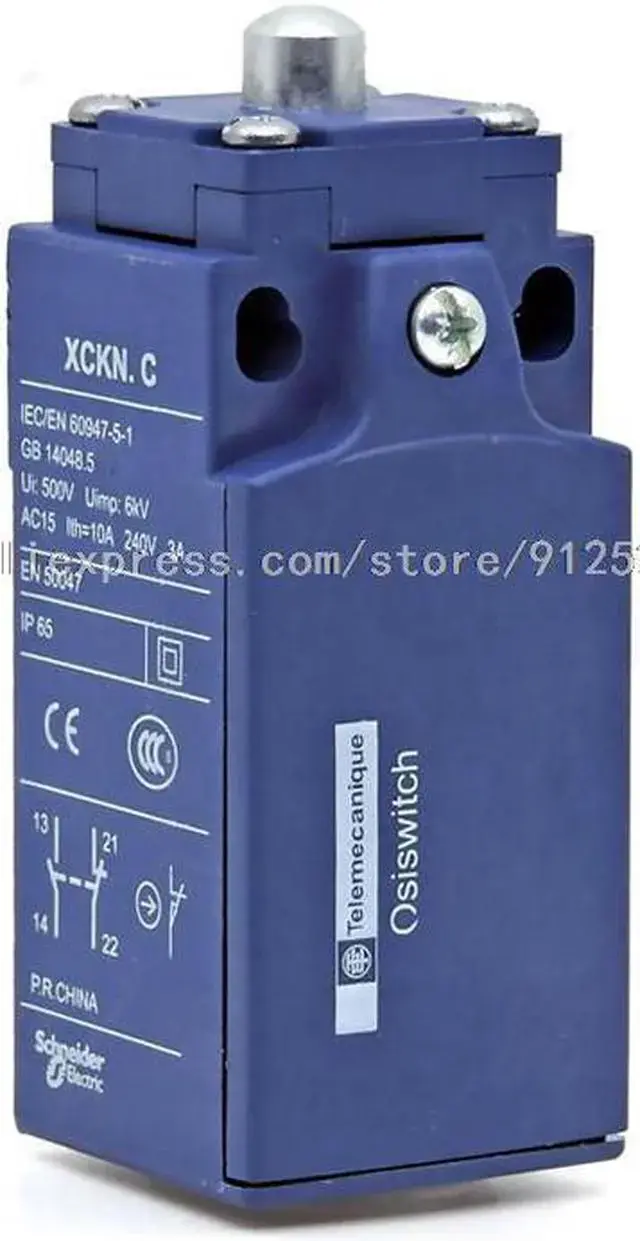

Limit switch - XCKN2110P20C
Limit Switch – XCKN2110P20C
Product Overview
The XCKN2110P20C is an industrial‑grade mechanical limit switch designed for reliable position detection, end‑of‑travel sensing, and safety interlock functions in machinery and automation systems. It features a robust snap‑action contact mechanism and a long‑life actuator, suitable for CNC machines, woodworking equipment, conveyors, and control panels.
Technical Specifications
General
Model: XCKN2110P20C
Switch Type: Mechanical Limit Switch (Snap Action)
Series: XCKN Series (Heavy‑duty industrial switches)
Actuator Type: Roller Lever Arm
Contact Configuration:
1NO + 1NC (One Normally Open + One Normally Closed)
Electrical Ratings
Rated Voltage: Up to 600V AC
Rated Load Current:
10A @ 600V AC
Contact Material: Silver alloy for reliable conductivity
Insulation Resistance: High insulation for stable switching
Dielectric Strength: Designed to handle industrial electrical stresses
Mechanical & Performance
Actuation: Snap‑action contact system for fast, reliable switching
Operating Force: Standard mechanical activation force
Mechanical Life: Very high cycle durability for frequent operation
Operating Speed: Suitable for rapid actuation
Mounting: Panel or bracket mountable with secure fixing holes
Environmental Conditions
Operating Temperature: –25°C to +70°C
Humidity: Suitable for standard industrial humidity levels
Protection: Heavy‑duty housing well‑suited for workshop environments
Vibration & Shock: Industrial‑rated for mechanical reliability
Construction & Materials
Housing Material: Durable thermoplastic / fiberglass reinforced plastic
Actuator: Roller lever for smooth, reliable actuation
Terminals: Screw / quick‑connect terminals for secure wiring
Applications
End‑of‑travel detection on CNC machine axes
Position sensing on woodworking machinery
Conveyor system limit detection
Safety interlocks in automated panels
General industrial automation position sensing
Key Features
Heavy‑duty industrial limit switch
Snap‑action high reliability contacts
Roller lever for versatile activation
Robust construction for harsh environments
Long mechanical and electrical life
Package Includes
1 × Limit Switch (XCKN2110P20C)
