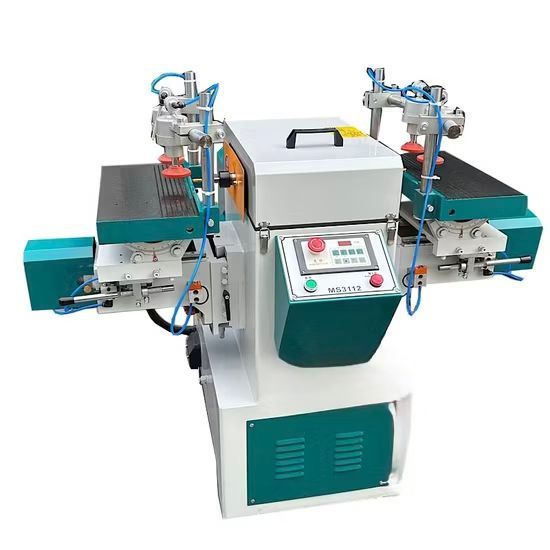

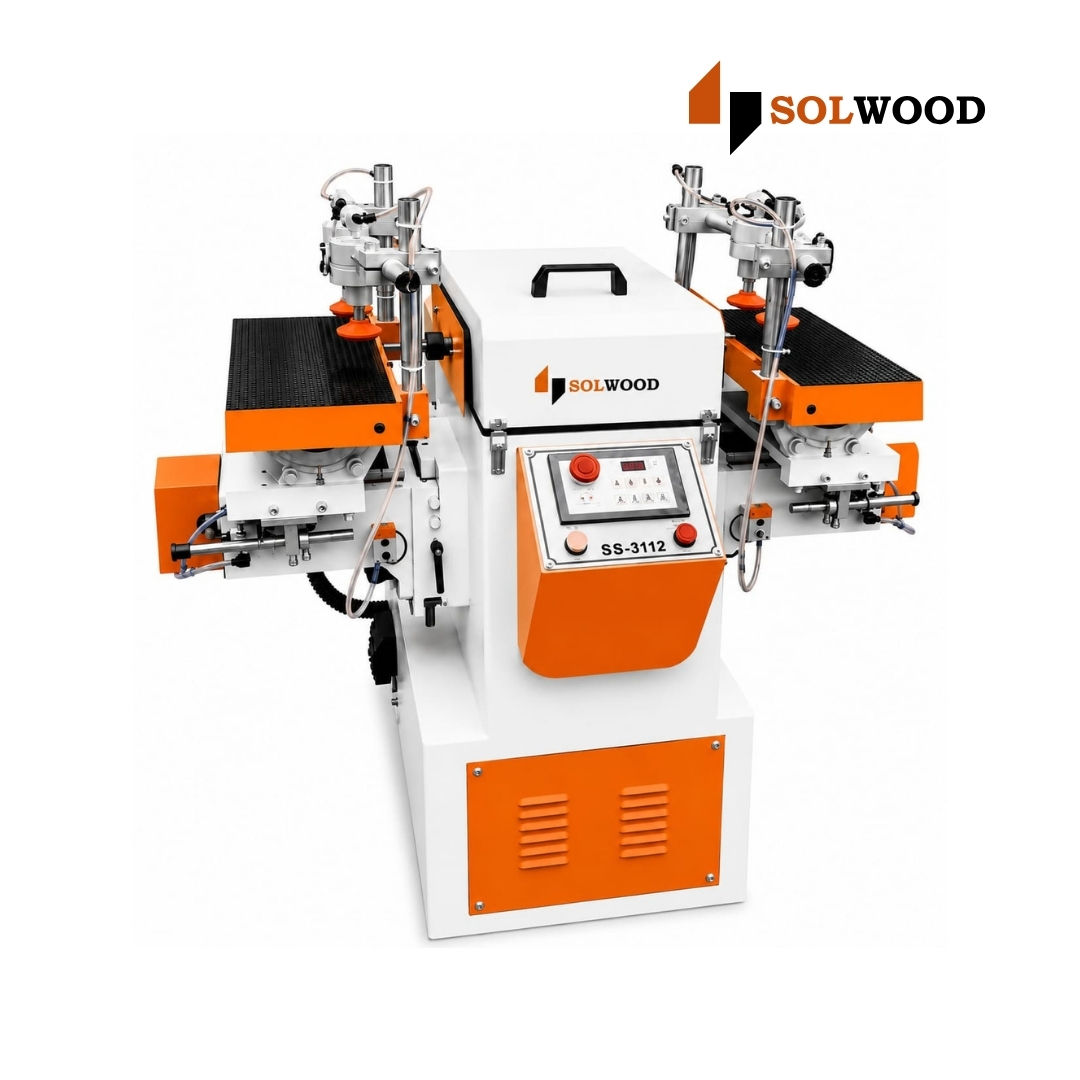

Oscillation Mortiser

Oscillation Mortiser – Heavy Duty for Precision Joinery

Our Oscillation Mortiser is designed for accurate, smooth, and high-speed mortise cutting in solid wood. The oscillating spindle movement reduces heat, improves tool life, and delivers clean mortises for doors, windows, frames, and furniture components. Ideal for carpentry units, solid wood factories, and professional woodworking workshops.

Technical Specifications :
Machine Type : Oscillation Mortising Machine
Working Stroke (X-Axis) : 0–150 mm (Model dependent)
Spindle Oscillation : Automatic vertical oscillation
Spindle Motor Power : 2.2 kW / 3 HP
Spindle Speed : 9,000–12,000 RPM
Maximum Mortise Depth : 0–80 mm
Maximum Mortise Width : 0–25 mm (depends on bit size)
Maximum Mortise Length : 0–120 mm
Table Size : Heavy-duty cast iron working table
Table Tilt : Adjustable for angled mortises
Clamping System : Pneumatic or manual clamping (model dependent)
Guide System : Linear rails for smooth movement
Compatible Tooling : Mortiser bits of various diameters
Dust Extraction Port : 100 mm
Machine Construction : Heavy cast iron body for zero vibration
Electrical Supply : 415V, 3-Phase, 50 Hz
Application : Doors, windows, frames, wooden legs, chair rails, furniture joinery
