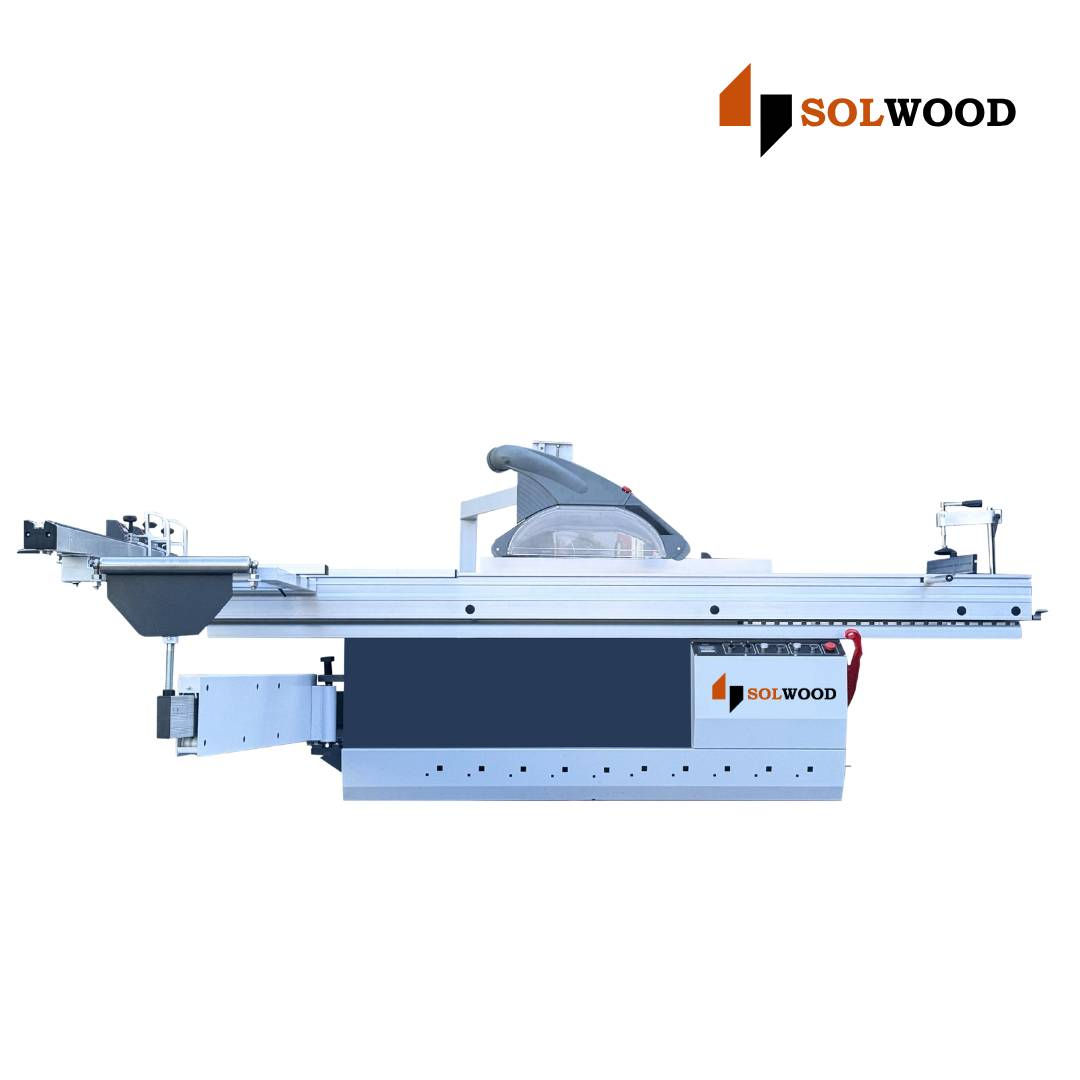

Sliding Panel Saw - SP-3.2H
SOLWOOD 3200 mm Sliding Table Panel Saw
Model No. : SP 3.2H
Heavy-Duty Precision Panel Saw With Motorized Blade Adjustment & Digital Readout
The SOLWOOD 3200 mm Sliding Table Panel Saw is a heavy-duty precision cutting machine designed for accurate sizing, straight cutting and mitre cutting of MDF, plywood, particle board, pre-laminated panels and other sheet materials. Built with a robust cast iron structure, precision aluminium sliding table and motorized blade movement, the machine delivers smooth, stable and highly accurate cutting performance for professional woodworking applications.
The machine features motorized up/down movement and motorized tilting of the main saw blade, with a digital readout for blade angle adjustment from 0° to 45°. Digital readouts are also provided for the rip fence and cross fence, allowing operators to set and repeat cutting dimensions with greater accuracy and convenience.
Key Features :
- 3200 mm Cutting Length for processing large panels and boards.
- 432 mm Precision Aluminium Sliding Table for smooth and stable material movement.
- Up to 125 mm Cutting Height for high-capacity panel cutting.
- 7.5 HP Main Saw Motor for powerful and consistent cutting performance.
- 1 HP Scoring Saw Motor for clean and accurate panel cutting.
- 350 mm Main Saw Blade for high-capacity cutting.
- 120 mm Scoring Saw Blade for improved cutting quality on laminated and coated panels.
- Motorized Main Blade Up/Down Adjustment for convenient cutting-height setting.
- Motorized Main Blade Tilting for fast and precise mitre-angle adjustment.
- 0°–45° Motorized Tilting Range with digital angle readout.
- Digital Readout Rip Fence for accurate and repeatable longitudinal cutting.
- Digital Readout Cross Fence for precise cross-cutting and sizing.
- Digital Readout Blade Angle for accurate mitre-cutting setup.
- German-Type Safety Covers for improved operator protection around the cutting area.
- Heavy-Duty Cast Iron Structure designed for excellent rigidity and vibration control.
- Precision Sliding System for smooth and controlled panel movement.
- Three-Phase 415V Power Supply suitable for industrial woodworking environments.
Technical Specifications :
| Specification | Details |
|---|---|
| Machine Type | Heavy-Duty Sliding Table Panel Saw |
| Cutting Length | 3200 mm |
| Sliding Table Width | 432 mm |
| Sliding Table | Precision Aluminium Sliding Table |
| Maximum Cutting Height | Up to 125 mm |
| Main Saw Motor | 7.5 HP |
| Scoring Saw Motor | 1 HP |
| Main Saw Blade Diameter | 350 mm |
| Scoring Saw Blade Diameter | 120 mm |
| Main Blade Movement | Motorized Up & Down |
| Blade Tilting | Motorized |
| Tilting Angle | 0°–45° |
| Blade Angle Display | Digital Readout |
| Rip Fence | Digital Readout |
| Cross Fence | Digital Readout |
| Safety Cover | German-Type Safety Cover |
| Machine Structure | Heavy-Duty Cast Iron |
| Power Supply | 3 Phase, 415V, 50Hz |
| Weight | 1250 Kgs. approx. |
