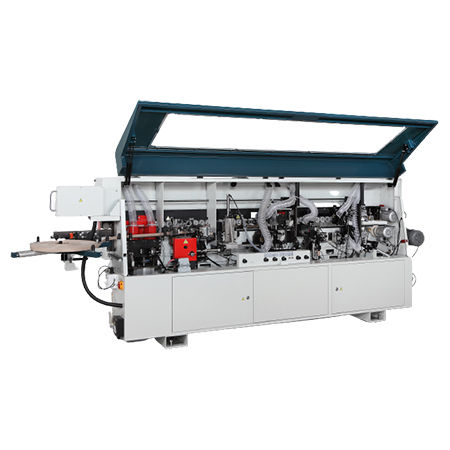

Rapid Edge Pro - MAX-370

SOLWOOD Group | OAV Taiwan Edge Banding Machine – MAX 370 RapidEdge Pro
• Brand: OAV Taiwan
• Authorized By : Solwood Group
• Model: MAX-370 RapidEdge Pro
• Feeding Speed: Up to 9 m/min for fast and efficient edge banding
• Panel Thickness Capacity: 8 – 45 mm
• Edge Band Thickness: 0.4 – 3 mm
• Minimum Panel Width: 90 mm
• Minimum Panel Length: 170 mm
• Working Table Height: 960 mm
• Extensible Support Width: 560 mm
• Dust Extraction Port: Ø 5 Inch (125 mm)
• Total Installed Power: 6.7 kW
• Industrial-Grade Performance: Built for continuous professional use
Processing Units & Speed
• Pre-Milling Unit: 12,000 RPM
• End Trimming Unit: 12,000 RPM
• Flush Trimming Unit: 12,000 RPM
• Corner Rounding Unit: 12,000 RPM
• Buffing Unit: 3,000 RPM
• Premium Edge Finish: Smooth, clean, and chip-free results
Motor Power Configuration
• Feeding Motor: 1.5 kW
• Glue Pot Heating (5 Elements): 1.315 kW
• Pre-Milling Motor: 1.5 kW
• Pre-Heating Unit: 0.4 kW
• Glue Spindle Motor: 0.25 kW
• End Trimming Motor: 0.22 kW
• Flush Trimming Motors: 0.37 kW × 2
• Corner Rounding Motor: 0.37 kW
• Upper & Lower Buffing Motors:
  – 0.12 kW (3 Phase)
  – 0.18 kW (3 Phase)
Dimensions & Weight
• Packing Size: 3960 × 720 × 1748 mm
• Net Weight: 905 kg
• Gross Weight: 1190 kg
• Heavy-Duty Construction: Stable, durable, and vibration-resistant
