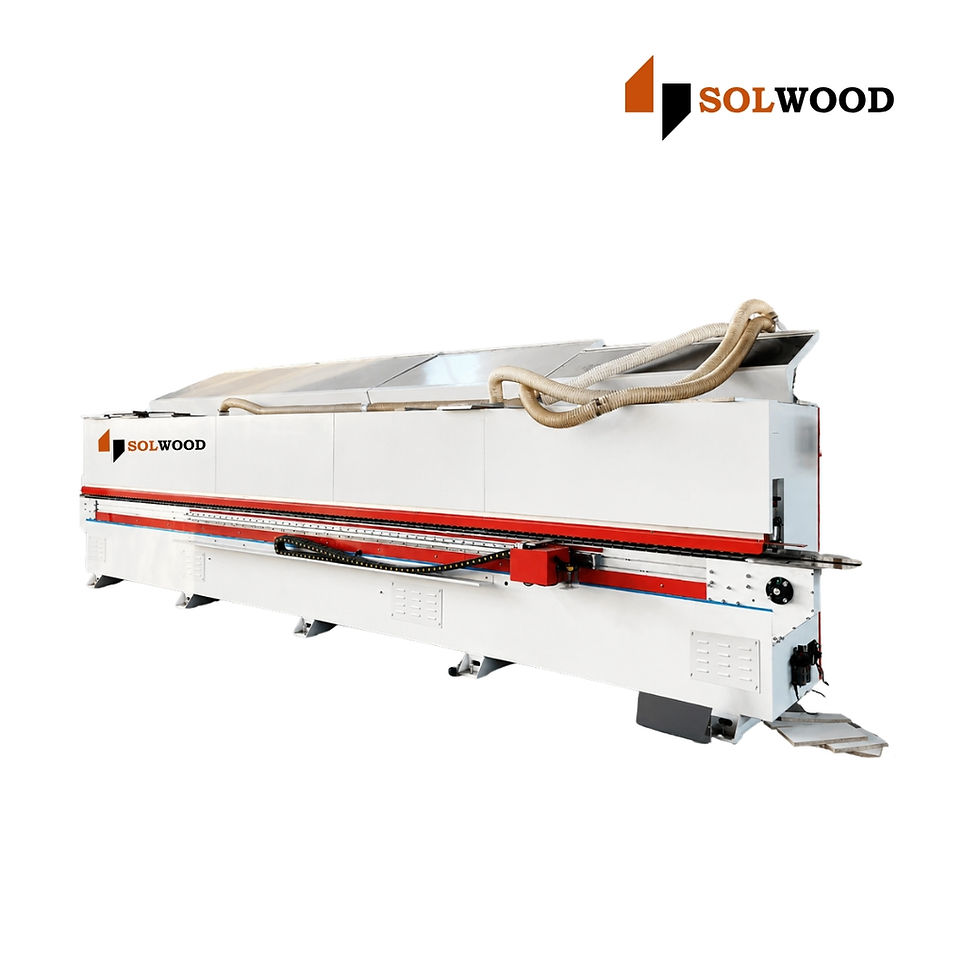

Soft Forming Edge Banding Machine - SC-750J

SOLWOOD Soft Forming Edge Banding Machine
Model No. : SC-750J

Product Overview
The SOLWOOD SC-750J Soft Forming Edge Banding Machine is a high-performance solution designed for advanced edge banding applications including J-shape, C-shape, bevel, and soft forming profiles. Engineered for precision, speed, and flexibility, this machine ensures superior edge finishing for modern furniture manufacturing.

Technical Specifications
Working Capacity
Conveyor Speed: 10 – 12 m/min
Supported Panel Thickness:
Oblique Straight Edge: 15 – 25 mm
J-Type / C-Type: 18 mm (customizable)
Motor Configuration
Conveyor Motor: 3.7 kW
Pre-Milling Motors: 1.8 kW × 2 (VFD Controlled)
Bevel / Straight Milling Motors: 3.5 kW × 2
JC Milling Motors: 6 kW × 2
Edge Band Slotting Motor: 600 W
Glue Pot Motor: 0.55 kW
End Cutting Motor: 0.37 kW × 2
Trimming Motors: 0.55 kW × 2
Upper Rough Trimming: 0.75 kW × 2
Upper Fine Trimming: 0.75 kW × 2
Polishing Motor: 1.1 kW
Electric Lifting Motor: 0.37 kW
Heating System
Glue Pot Heater: 2 kW
Auxiliary Heating: 6 kW
Hot Air Heating System: Ensures proper softening and strong adhesion of edge band
Machine Requirements
Total Installed Power: 41 kW
Voltage: 380V / 3 Phase / 50 Hz
Air Pressure: 0.6 – 0.8 MPa
Dust Collection
Vacuum Ports: 6 Nos.
Port Diameter: Ø95 mm
Machine Dimensions & Weight
Machine Size: 7510 × 830 × 1580 mm
Machine Weight: Approx. 2700 kg
Key Functional Units
Pre-Milling Unit
Dual high-speed motors for precise edge preparation
Servo-controlled lifting for accuracy and consistency
Gluing System
Glue pot with stable and uniform glue application
Double heating system (hot air + auxiliary heating)
Cooling fan ensures smooth tape feeding
Pressing Unit
Multi-profile pressing capability for:
J-Type
C-Type
Bevel Straight
Horn Shape
Half J (Left/Right)
End Cutting Unit
Dual saw blades for precise front and rear trimming
Adjustable pressure for different materials
Low-noise, anti-chipping operation
Trimming Unit
Rough & fine trimming for smooth finishing
Edge rounding and scraping for premium finish quality
Polishing Unit
High-speed polishing motors
Ensures clean, smooth, and glossy edges
Control System
PLC Controller: Xinjie brand
Display: High-definition interface
Features:
Real-time operation monitoring
Data storage capability
Multi-language support

Key Features of SOLWOOD 750J
Advanced soft forming edge banding capability
Multi-profile processing (J, C, bevel, custom shapes)
High-speed and precision machining
Strong and durable industrial construction
Efficient heating and gluing system
User-friendly PLC control system
Ideal for modern modular furniture production
