Vaccum Membrane Press – Single Working Table - SKW3300D-1

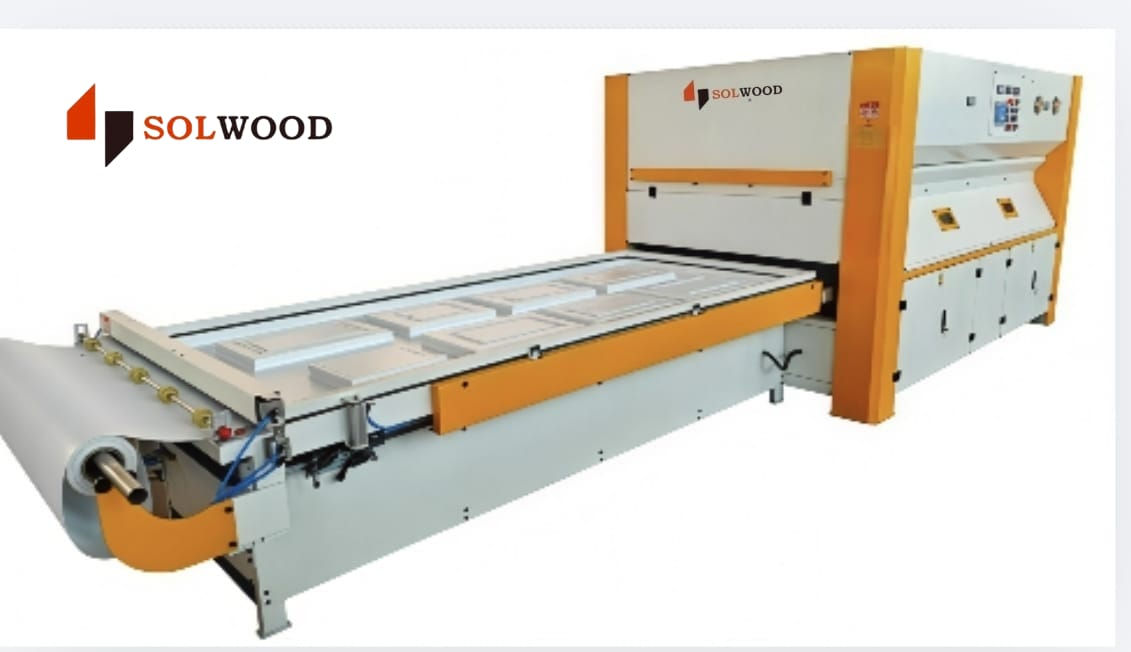

Vaccum Membrane Press Machine – Model - SKW-3300D-1

Technical Specifications
✅ Machine Type: Vaccum Membrane Press / PVC Membrane Laminating Machine
✅ Model: 3300D
✅ Working Table Type: Single Working Table
✅ Total Power: 24 KW
✅ Heating Power: 20 KW
✅ Working Voltage: 380V / 3 Phase
✅ Current Requirement: 125A
✅ Average Power Consumption: 10 kW/h

Working Table Details
✅ Working Table Size: 3000 × 1360 × 80 mm
✅ Working Table Inner Size: 2870 × 1230 mm
✅ Table Edge Wrapping: Silicone wrapped edges for better sealing & film safety
✅ Bottom Plate Structure:
Upper Layer: 3mm Galvanized Sheet
Middle Layer: 8mm Galvanized Grid
Bottom Layer: 2mm Cold Plate
Vacuum System
✅ Vacuum Pressure: Max 0.095 MPa
✅ Vacuum Pump Capacity: 140 m³/h (Sino-German Joint Venture)
✅ Vacuum Storage Tank: 0.6 m³, 5mm thickness
✅ Air Pressure Requirement: 0.5 MPa

Machine Dimensions
✅ Overall Machine Size: 7000 × 2100 × 2000 mm
Heating System
✅ Heating Tube Temperature (Working): 150°C – 200°C
✅ Heating Tube Actual Temperature: 100°C – 150°C
✅ Heating Tube Type: Chrome-Nickel Wire (Energy saving & long life)
✅ Heating Tube Size: 18 × 1420 mm (800W each)
✅ Heating Method: Partial Heating + Full Surround Heating
✅ Thermal Insulation Material: High Density Rock Wool
✅ Heating Chamber Light: 150W × 2 Tungsten Lamps

Machine Body & Structure
✅ Main Frame Material: 3mm Square Tube (CO2 Welded)
Sizes: 40×80mm / 40×60mm / 40×40mm
✅ Heating Chamber Plate: 1.2mm Cold Rolled Plate
✅ Machine Body Plate: 1.8mm Cold Rolled Plate
✅ Silicone Curtain Thickness: 4mm (Korean material for heat insulation)
Pneumatic & Control Components
✅ Pneumatic Valves: AONIEN (Taiwan/China) Stainless Steel
✅ Solenoid Valve: AirTAC (Taiwan/China)
✅ Air Pipe: 8mm SANNESS (Taiwan/China)
✅ Lifting Cylinder: 63mm × 100mm × 4 pcs (AirTAC)
✅ Press Frame Cylinder (Auto Frame): 40mm × 100mm × 4 pcs (AirTAC)

Automation & Features
✅ Automatic Frame Pressing & Locking System
✅ Automatic Cutter:
Length: 1500mm
Diameter: 32mm
Air Pressure: 0.5 MPa
Type: Magnetic root automatic cutting knife
✅ Running Motor: 100:15 unit speed reducer
✅ Running Caster Wheel: 80mm Nylon muffler wheel
✅ Track Rail: 3mm × 30mm × 50mm square rail

Electrical Components
✅ Touch Screen: 7 Inch DELTA
✅ Frequency Converter: Schneider (German)
✅ AC Contactor: Schneider (France)
✅ Intermediate Relay: Schneider (German)
✅ Circuit Breaker: DELIXI 125A 4P
✅ Phase Sequence Protector: XJ3-380V
✅ Switching Power Supply: 24V 5A

Production Capacity / Working Speed
✅ Processing Time: 3–5 minutes per board
(Depends on PVC film type & board thickness)
Cooling System
✅ Cooling Type: Spray Cooling System
(Better than fan cooling, reduces dust & cools faster)
✅ Cooling Water Pump: 1206, 220V Pressure Pump
