Wide Belt Sander - Plywood - SR-R-RP-1300P

SOLWOOD Plywood Wide Belt Sanding Machine

Three Head Calibration & Sanding Machine
The SOLWOOD Three Head Wide Belt Sanding Machine is designed for high-precision calibration and surface sanding of plywood, MDF, block board, particle board, and laminated panels. This machine integrates heavy-duty calibration and fine sanding units to ensure uniform thickness and superior surface finishing in plywood production lines.
With its three-head sanding configuration, the machine performs calibration, intermediate sanding, and fine finishing in a single pass, improving productivity and delivering consistent sanding quality.

Key Technical Parameters
Maximum Working Width: 1300 mm
Minimum Working Length: 450 mm
Working Thickness Range: 3 – 120 mm
Feeding Speed: 8 – 24 m/min (Variable Speed Control)
Abrasive Belt Size: 1330 × 2200 mm
Total Motor Power: 95.42 kW
Working Air Pressure: 0.6 MPa
Compressed Air Consumption: 17 m³/h
Dust Extraction Requirement: 13,700 m³/h
Machine Dimensions: 2020 × 2770 × 2110 mm
Net Weight: 5600 kg

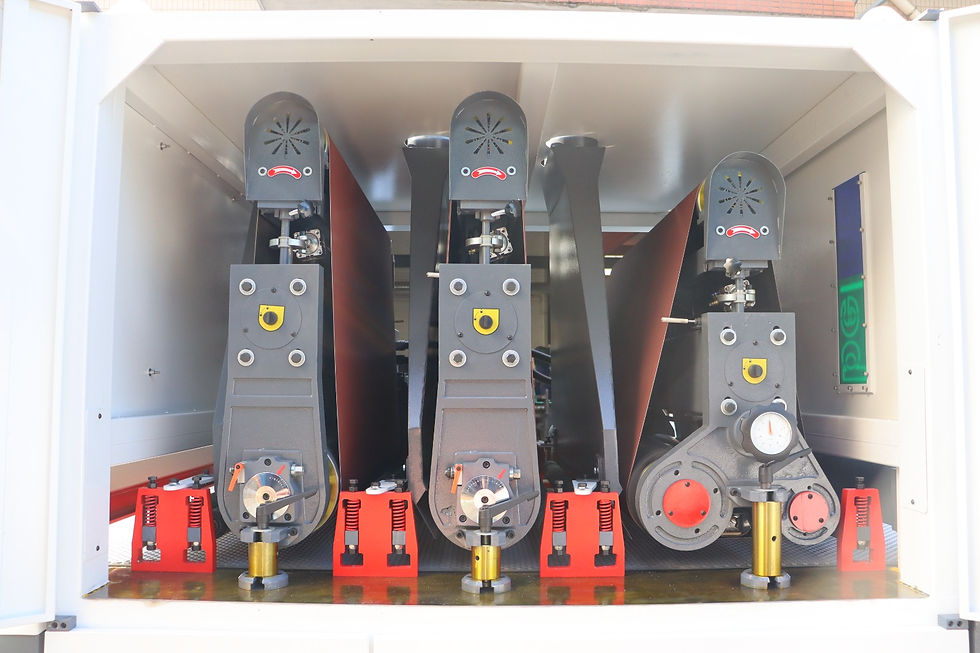

Three Head Sanding Configuration
1st Head – Calibration Roller Unit
Heavy-duty steel roller designed for accurate thickness calibration of plywood boards
Removes uneven surfaces and ensures consistent panel thickness
2nd Head – Rubber Contact Roller
Provides intermediate sanding
Improves flatness and prepares the board for finishing
3rd Head – Sanding Pad / Fine Sanding Unit
Performs fine sanding and surface finishing
Produces smooth and uniform panel surfaces ready for further processing

Machine Features
Heavy-duty industrial steel frame construction
Three-stage sanding system for calibration and finishing
Variable feed conveyor speed for different sanding requirements
Automatic abrasive belt oscillation system
Pneumatic belt tensioning system
High-precision sanding for uniform board thickness
Large dust extraction ports for clean working environment
Low vibration structure for stable operation
Easy-to-operate electrical control panel
