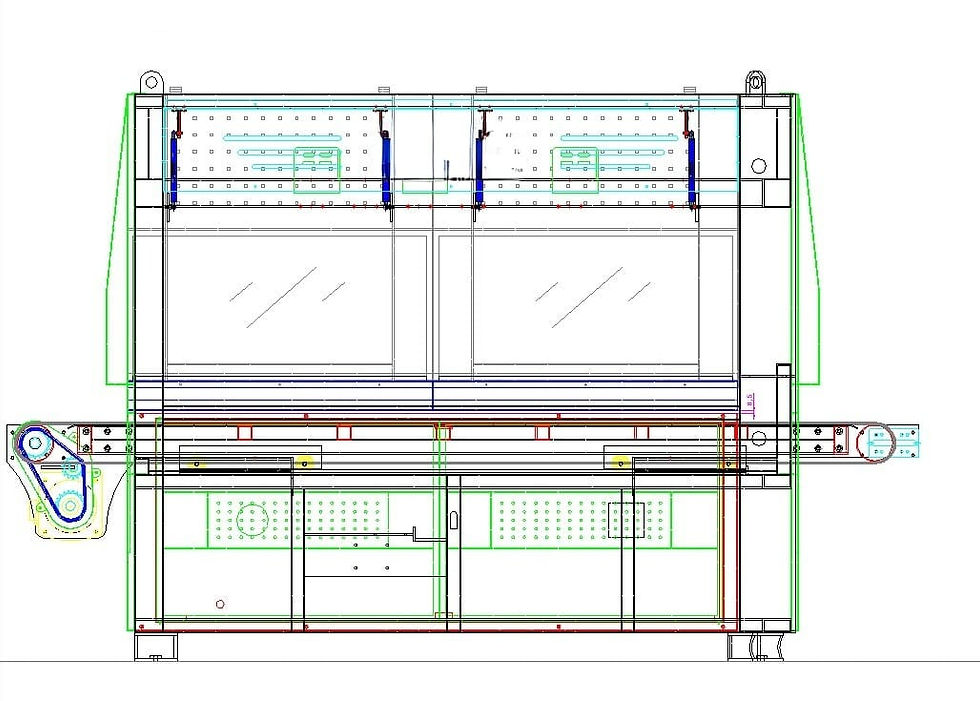

Wide Brush Sander - WBS-700-4

Wide Brush Sander Machine : WBS-700-4

Product Overview
The SOLWOOD - Wide Brush Sander is a heavy-duty industrial sanding machine designed for efficient surface finishing, cleaning, and texture preparation of solid wood and panel materials. It is ideal for furniture factories, doors, panels, and solid wood processing units requiring uniform sanding and high productivity.
Technical Specifications
Maximum Processing Width: 700 mm
Minimum Processing Length: 350 mm
Maximum Processing Height: 10 – 200 mm
Work Table Height: 850 mm
Feeding Speed: 1 – 12 m/min (Variable)
Conveyor Motor Power: 1.5 kW
Power Requirement: 415 V / 50 Hz
Dust Collection Ports: Ø200 mm × 3 Nos.
Total Connected Power: 10 kW
Machine Dimensions (L×W×H): 3200 × 1600 × 2100 mm
Machine Weight: Approx. 2000 kg

Motor & Brush Head Configuration
(4 Head – Disc + Roller with Oscillation)
Total Brush Heads: 4 Heads
Disc Type Brush Heads (2 Nos.)
Type: Disc Sanding Heads
Quantity: 2 Heads
Function:
Edge sanding
Profile & contour sanding
Cleaning of uneven or carved surfaces
Disc Diameter: Heavy-duty industrial grade
Motor Drive: Independent high-torque motors
Application: Solid wood, doors, panels, decorative surfaces
Roller Type Brush Heads (2 Nos.)
Type: Roller Brush Sanding Heads
Quantity: 2 Heads
Function:
Surface sanding
Uniform finishing across full width
Roller Length: Suitable for 700 mm working width
Oscillation: Yes (Built-in Oscillating System)
Improves surface finish
Reduces sanding marks
Increases abrasive life
Brush Material Compatibility
Abrasive sanding brushes
Nylon / Sisal / Wire brushes (as per application)
Motor & Drive System
Brush Motors:
Independent motors for each brush head
Heavy-duty continuous-duty motors
Conveyor Motor:
Power: 1.5 kW
Gearbox-driven conveyor system
Speed Control:
Adjustable feed speed: 1 – 12 m/min
Optimized brush speed for burn-free finish
Height & Pressure Adjustment:
Precision height adjustment for all brush heads
Uniform pressure across entire working width
